Automatic Bar Feeder

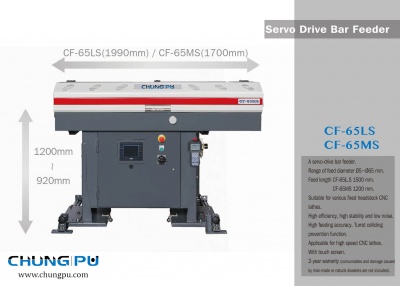

Automatic Bar Feeder
CF-65LS / CF-65MS

The servo drive provides accurate and quiet action to prevent the bar from crashing the turret.
Color large size man-machine interface, touch panel operation, easy to operate.
Polymer wear-resistant hose effectively reduces the vibration noise.
One-piece steel frame, solid body.
Free adjustment of fixture, material changing without adjustment of fixture.
Suitable for any sliding head and fixed head CNC lathes.

Specification

Bar diameter 5mm~65mm
Magazine capacity 61pcs(10mm)
Power supply 220V
Feed drive AC servo motor
Controller & Screen Digital Interface PLC control &HMI touch panel
Weight 330kg/290kg
Length 1990mm/1700mm
Height 1050mm~1350mm
Maximum bar length 1500mm/1200mm
Depth 900mm~1200mm
