Products

Digital Refractometer

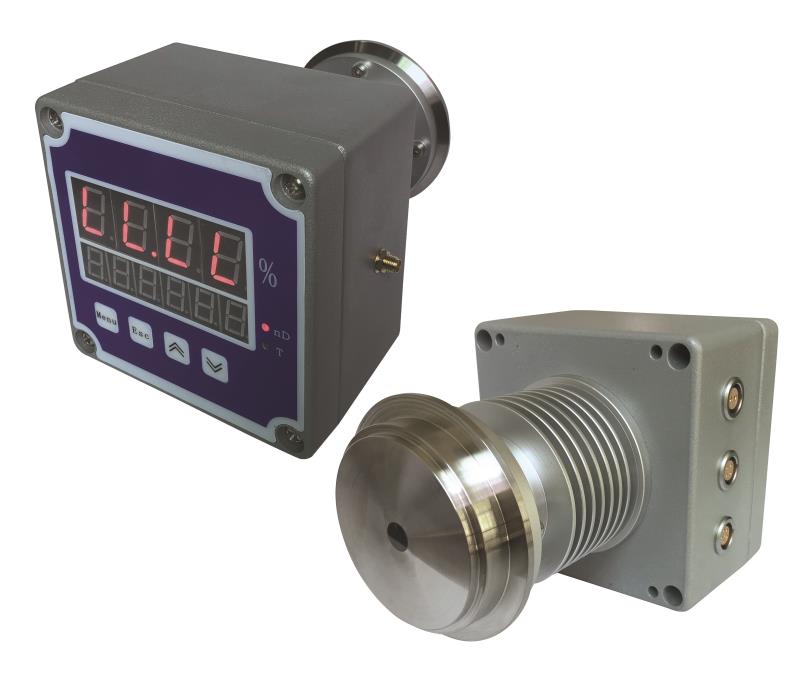

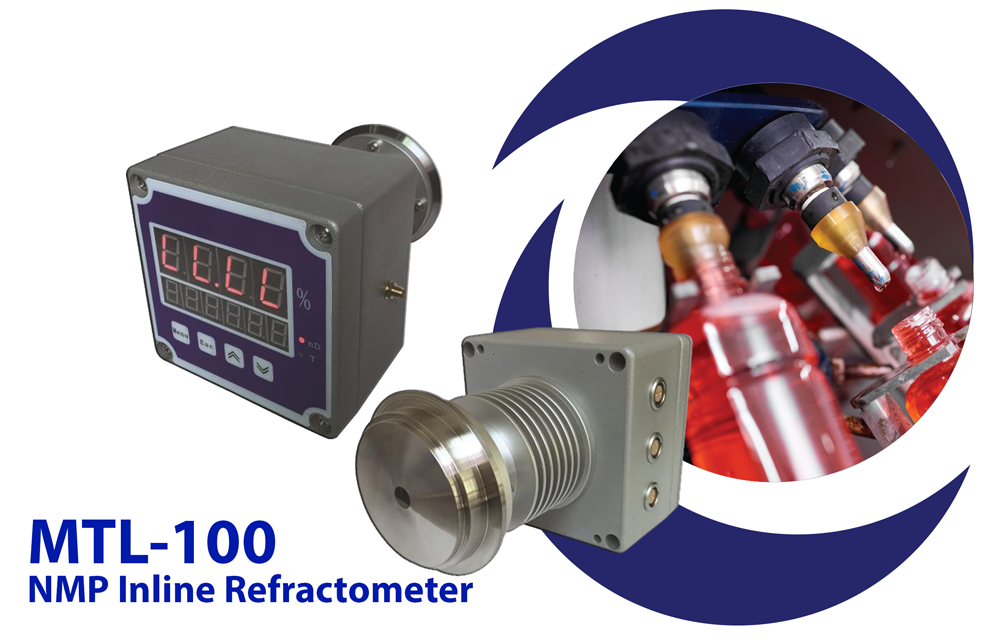

NMP Inline Refractometer
MTL-100

- Digital Brix Inline Refractometer Temperature Measurement Range:5℃~100℃
- Precision of Measurement temperature:±0.1℃
- Operation Temperature:5℃~40℃
- Automatic Temperature Compensation (ATC)
- IP 67
- Dimension :90mm x 60mm
- Weight:3KG

Specification

Digital NMP Inline Refractometer Specifications

Range:

NMP 0.00%~100.00%

ND1.33299~1.47285

Temperature: 5~100℃(ATC)



NMP 0.01%

nD ±0.0001

Accuracy:

NMP ±0.1%

nD ±0.0002

IP:

67

Environment working temperature:

5℃~40℃

Environment working pressure(MAX)::

2MPa

Power In-put:

DC24V

Light Source:

LED

Output Mode:

Ethernet 485

Size:

90mm x 60mm

Net Weight:

3KGs

Monitor shown:

NMP % (concentration)

Refractive Index (nD)

Temperature  (℃)
