- Digital Antifreeze Fluid Refractometer
- Temperature Measurement Range：0℃~40℃
- Precision of Measurement temperature：±1℃
- Operation Temperature：-10℃~40℃
- Automatic Temperature Compensation (ATC)
- Automatic Shut Off
- Dimension ：120×56×36mm
- Weight：233g
Digital Antifreeze Fluid Refractometer Specifications
|
Model |
Test Solution |
Range |
Resolution |
Precision |
|
MTP-700 |
Antifreezing Liquid |
Propylene Glycol -51.1°C ~0 °C |
0.1°C |
± 1°C |
|
|
|
Ethylenen Glycol -65°C ~0 °C |
0.1°C |
± 1°C |
|
|
|
Battery 1.0 ~ 1.51 sg |
0.01 sg |
± 0.05 sg |
|
|
|
AdBlue(DEF) 0 ~ 45 % |
0.1% |
± 0.5% |

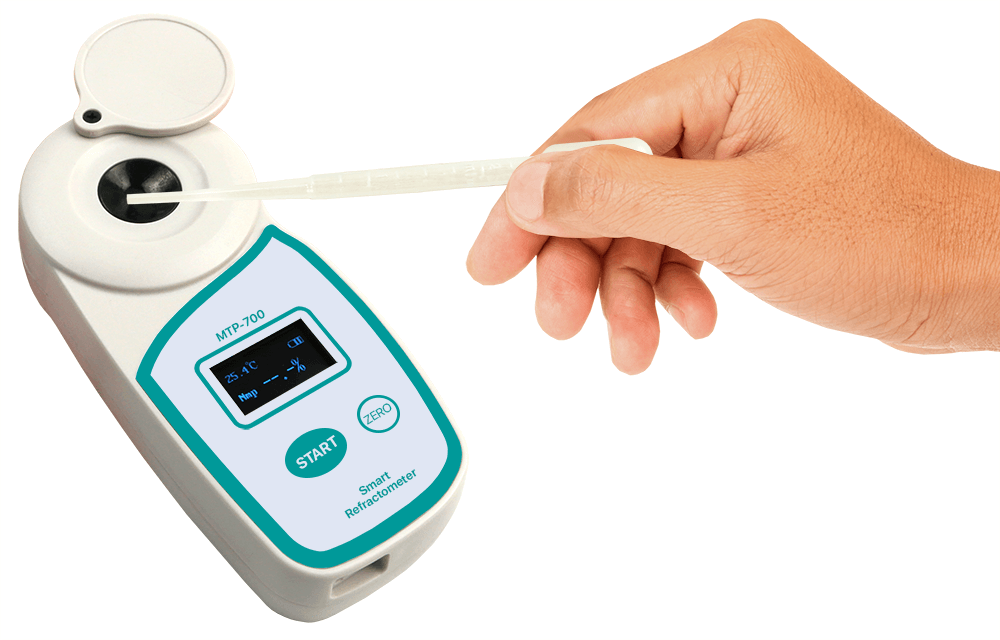

The Digital Antifreeze Fluid Refractometer (MTP-700) series are designed for measuring the concentration of the battery fluids, the freezing point of antifreeze liquid and windshield cleaning fluid. With the indication of the percentage you may know at which temperature the fluid will be frozen for both propylene glycol and ethylene glycol. It can also be used for checking the strength of electrolyte solution battery.
