Industrial Endoscope (Borescope)
7
MEGA-7

- 7" (180mm) color LCD TFT display videoscope with high definition 720 x 480 pixel resolution (640 x 480 pixel in storage).
- Brightness adjustment of LED lamps for illuminating viewed object.
- Digital zoom in/out, photo comparison and image rotation.
- AV output for viewing images/video on a monitor.
- Video and images can be transferred to a PC via the SD card or USB output.

The TIO MEGA-7 Video Scope Controller Display main Unit (Borescope, Endoscope, Videoscope) is a compact handheld instrument that allows the user to view applications in restricted spaces that could not normally be seen with the naked eye.

The 7 inch (180 mm) Inspection Video Camera system (endoscope) is supplied in a sturdy carrying case and consists of a display unit, insertion tube, power adapter and audio video cable. The display unit of the controller with a 7 inch wide angle TFT LCD screen endoscope has the capacity of viewing, storing and reviewing photos and video images. Images can also be displayed directly on a TV screen or stored and transferred to a PC for viewing later. The 7” display unit is powered by rechargeable Li-polymer batteries and charger included.

Additional Features :

- SD card storage capacity up to 32GB.

- Record voice-over audio in video recording model.

- Snap-shot while recording/replaying.

- Equipped with screen protection cover (* Waterproof and Dust-Proof of IP67 for optional camera probe / insertion tube)

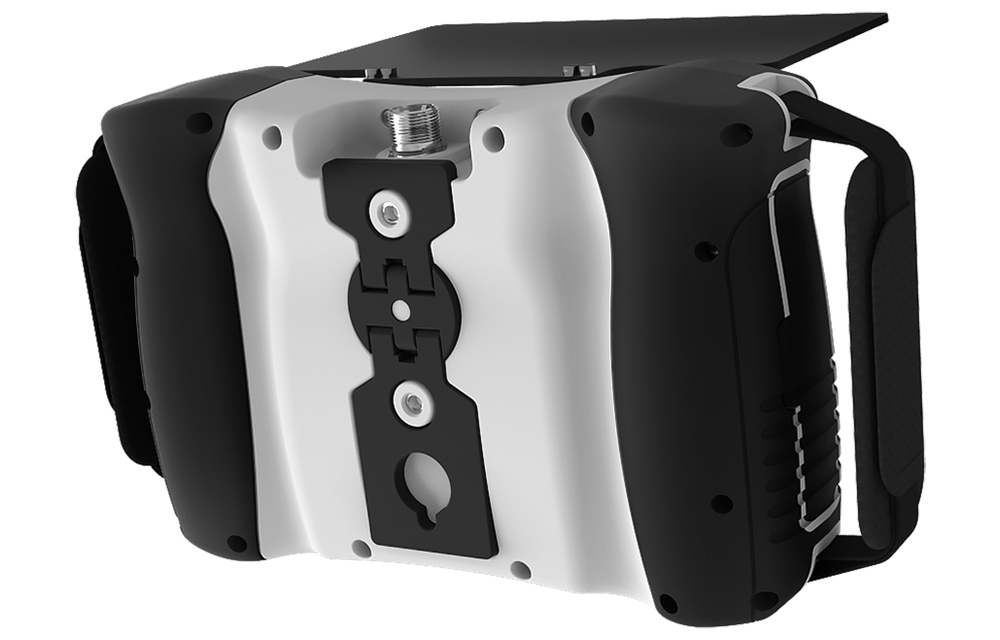

- Rugged two handheld design and left / right hand control; standup support and tripod mount facility.

- On-screen menus support.

- Li-ion battery can last up to 8 hours.

- Ideal for industrial maintenance, aircraft inspection, construction inspection, vehicle service and HVAC repair, etc.

Other Accessories (Optional) :

(1) Side view camera probe
(2) Dual Lens camera probe
(3) 2 Ways articulating probe
(4) 4 Ways articulating probe
(5) UV Light camera probe
(6) Rigid type camera probe
(7) Telescope camera probe
(8) Cable reels
(9) Side angle mirrors
(10) Protective corn
(11) Protective cover lens
(12) Guide ball
(13) Magnet Tips
(14) Measurement software kit

* For more accessories information of the 7 inch endoscope (borescope, inspection video camera), please contact us directly!

Specification

Controller / Main Display Unit / Console

Power

DC5V

Display

LCD Panel Resolution 720 X 480 Pixels

Interface

Mini USB 1.1/2.0 or AV out

Battery (not user serviceable)

Rechargeable Li-Polymer Battery

Power Adapter

100V – 240V AC in / 5V DC out

Video Out Format

NTSC & PAL

Compression Format

MPEG4 / ASF

Dimension

260 x 160 x 70 mm

Net Weight

About 1.3KG

Video Recording Format

MPEG4 / ASF (640 X 480)

Working & Storage / Battery charging temperature range

-10∘C to 60∘C / 0∘C to 40∘C

Functions:

Snapshot, Video recording, Audio recording, Picture & video review on LCD screen, TV out, transfer of picture & video from SD card to PC, Digital Zoom, Recording, Wireless Inspection System.

The 7" (180mm) large high resolution TFT display industrial endoscope (inspection video camera) with rugged handheld design is a professional 7” video scope controller designed for Piping Inspections, Aerospace, Marine, Plumbing, Electrical, Construction, Aircraft Rescue & Firefighting (ARFF), Firefighter and more.
