Ball Valve & Ball Stud Machines

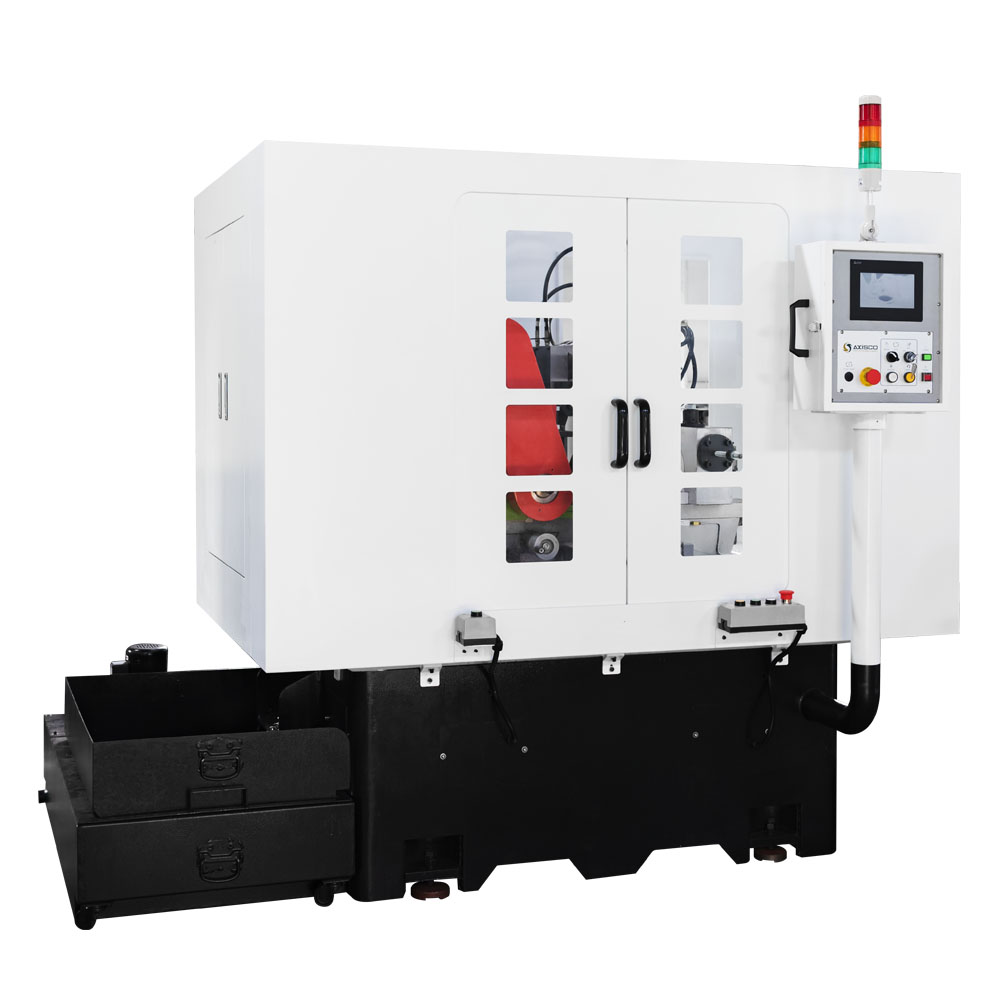

Ball Valve Ball Turning, Grooving, Chamfering 3 in 1 Machine 1/4"~2"
BA-3in1-200

The ultimate solution for small size ball valves. O.D. turning, chamfering, & grooving are done at once with high precision and very easy to operate.

O.D. rough/fine turning, both end facing chamfering, & side grooving are made in one time clamping.
Very easy to operate with human-machine interface.
Diameter tolerance up to±0.01mm, roundness up to 0.005mm.

Specification

Model: BA-3in1-200

Working Area: ¼”~2″

Main spindle motor: 5 HP

Main spindle rotation speed: Reduction gear, Variable speed

Dimension: 2060 x 1850 x 2030 mm

Weight: 2500 kg
