Products

Servo Drive Table Up Broaching Machine
Servo table-up broaching machine: An example of door closer piston broaching 8 ton
CHU-0813

CHU-0813, with an 8-ton broaching force and 1300mm stroke, can mass produce products with stable precision while taking into account environmental protection and power saving. Take the workpiece in the figure below; the machine can produce one workpiece in about 40 seconds and process nearly 720 pieces in 8 hours. The equipment occupies a small area of only about 2.6 square meters, which fits all kinds of factories.

What are the advantages of the CHU-0813?

√One-blade and two-blade designs are available for large quantity production.

√The auto loading/unloading device is available for continuous machining.

Specification

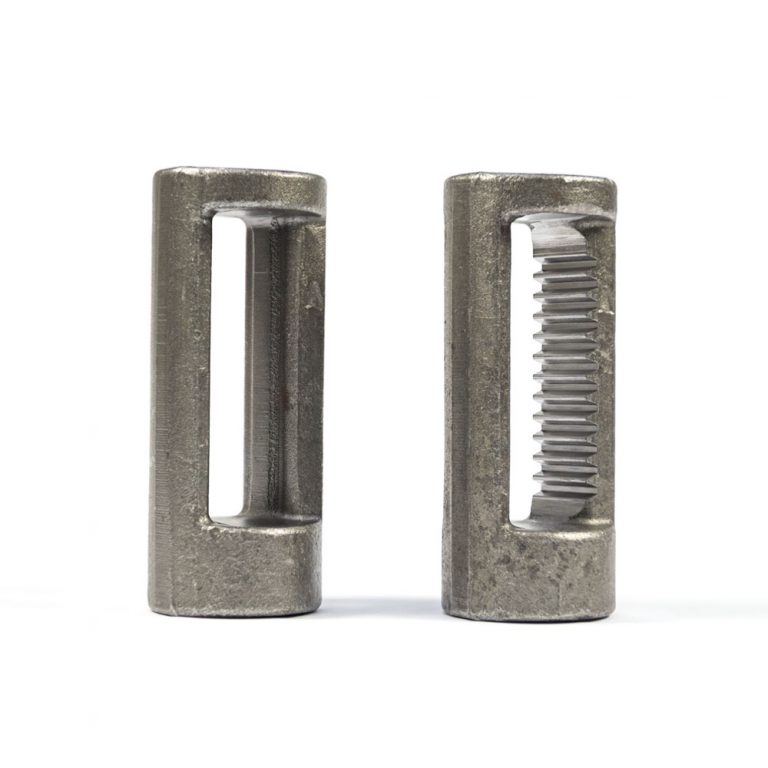

Before broaching & after broaching

Why choose Axisco?
It is recognized by the customers in more than 30 countries worldwide and has more than 35 years of experience. Our customers are all over the aerospace, automobile, gear, bicycle, hand tools, locks, hydraulic valve parts, electronic parts, and various hardware industries. We have a complete broaching solution, including CNC helical broaching machinesservo broaching machineshydraulic internal broaching machines, and hydraulic external broaching machines. Machines are in different tonnages and different strokes according to customer needs. The professional team can quickly respond to various customized mechanisms, fixtures, tools, and automation integration needs.

You may also be interested in
NC deep boring SPM for door closer                     CHU-1015 Servo table-up broaching machine


Specification
Model name: CHU-0813
Broaching Force: 8 ton
Max. stroke: 1300 mm
Broaching speed (in 60Hz): 10 m/min
Return speed (in 60Hz): 24 m/min
Max. workpiece size: ø225 mm
Working table height: 1072 mm
Main power: 7 kw
Machine Height: 3661 mm
Floor space: 1600*2680 mm
Net weight: 5500 kg
