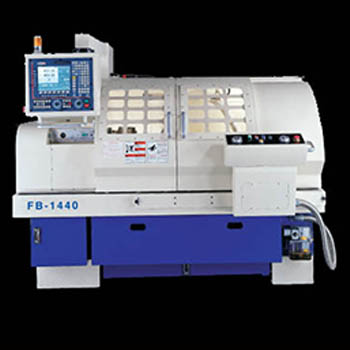

CNC HORIZONTAL LATHE- FLAT BED LATHE
PC-TECHNOLOGY-BASED LATHE
FB-14/16 series

Standard accessories:
CNC controller
Backplate for 9” chuck
Dead center MT#4 ( made of carton steel)
Dead center MT#4 with carbide tip
Spindle center sleeve MT#6 x MT#4
Level pads x 8 pcs
Toolset and box
Machine light
Operation manual and parts list
Optional accessories:
3-jaw scroll 9” chuck
4-jaw independent 10” chuck
Electrical H4 turret
Quick change tool post
Drill chuck and arbor
Rotating center MT#4
Hydraulic tailstock quill
Hydraulic chuck 8”
Steady rest
Follow rest

Specification


Description/Model FB-1440 FB-1640 FB-1660
WORKING CAPACITY
Swing over bed 360 mm 410 mm 410 mm
Swing over cross slide 180 mm 230 mm 230 mm
Distance between centers 890 mm 1400 mm 1400 mm
Width of bed 260 mm 260 mm 260 mm
HEADSTOCK
Spindle speed (rpm)

H:481-3000 rpm
L:25-480 rpm

Spindle nose D1-6
Spindle bore φ52.5 mm
Taper in spindle MT#4
SADDLE
Cross slide travel (X-axis) 205 mm 216 mm 216 mm
Longitudinal travel (Z-axis) 865 mm 1375 mm 1375 mm
TURRET
Tool station Std. Manual 4 way tool post
Opt. Electrical H4 turret
Size of external turning tool □20mm
TAILSTOCK
Quill diameter φ58mm
Quill travel 140 mm
Taper MT#4
MOTOR
Spindle motor AC 5 HP
Lubrication pump 1/4 HP
Coolant pump motor 1/6 HP
MEASUREMENT
N.W. / G.W. (Approx.) 2000 kg / 2500 kg 2050 kg / 2550 kg 2150 kg / 2650 kg
L x W x H ( Approx.)  2286 x 1800x 2230 mm 2286 x 1800x 2230 mm 2800 x 1800x 2230 mm
-L&W Machine Tools, Inc. reserves the right to alter any mechanical specification without prior notice in the interests of product development.
