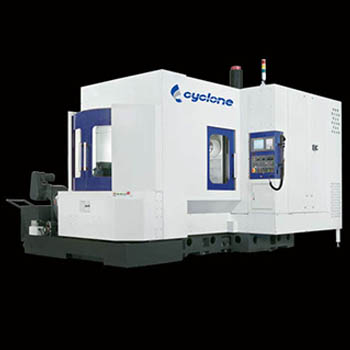

CNC HORIZONTAL MACHINING CENTER
CNC Horizontal Machining Center ( With Auto Pallet changer)
HT series

STANDARD ACCESSORIES:
Direct Driven 10000 rpm
Arm type 40 Tools
MAS BT-40
MAS BT-40 / P40-1
Spindle Oil Cooler
Air Blast through Spindle
MPG Hand Wheel
Full enclosure
Work Light
Alarm Lamp
Leveling Bolts And Pads
Tool Box
Heat Exchange Cabinet
One Year Warranty For Machine
OPTIONAL ACCESSORIES:
Direct Driven 12000 rpm
Direct Driven 15000 rpm
Arm Type 60 Tools
Arm Type 90 Tools
CAT-40
Coolant Through Spindle
Chip Conveyor
Niagara Coolant Shower
Tool Length Measurement System
Linear Scales
0.001° Indexing Table
APC 6 Pallets

Specification

MODEL UNIT HT-400 HT-500
TRAVEL
X-axis Travel mm 620
Y-axis Travel mm 560 600
Z-axis Travel mm 630 565
Distance From Spindle
Center To Table Center
mm 80-640 85-685
Distance From Spindle
Nose To Table Center
mm 100-730 100-665
SPINDLE
Spindle Speed rpm Direct Driven 10-10000 (Opt. 15000)
Spindle Motor kw 15/18.5
Spindle Nose   BT40
TABLE
Table Dimension mm 400 x 400 500 x 500
APC Change Time sec 7(180° Z-axis rotary) 8(180° Z-axis rotary)
Pallet Top surface configuration kgs 24-M16 x 5 x 80 24-M16 x 5 x 100
Table Load capacity mm 400 750
RAPID TRAVERSE
Rapid Travel (X/Y/Z) m/min 48 / 48 / 48
Cutting Speed Rate m/min 1-10
Feed Motor (X/Y/Z) kw 3.0 x 2 / 7.0 / 4.0
MAGAZINE
Tool Change Type   Arm Type
Tool Capacity set 40 (60 / 90)
Max. Tool Weight kgs 7
Max. Tool Length mm 300
Max. Tool Diameter
(Without adjacent Tools)
mm 80 / 150
Tool Change Time (T-T) sec 4.8 5
Tool Change Time (C-C) sec 7 7.5
OTHERS
Compress Air Supply kgs/cm2 6 kgs/cm2 over
Machine Size (LxWxH) mm 5060 x 3555 x 2810 5135 x 3555 x 2810
Net Weight kgs 14060 14260
Gross Weight kgs 14760 14960
-L&W Machine Tools, Inc. reserves the right to alter any mechanical specification without prior notice in the interests of product development
