Flattening Machine

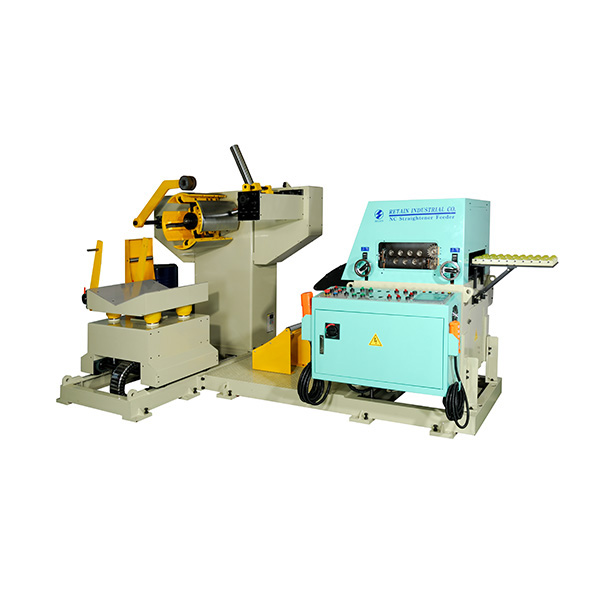

Reel Straightener Feeder (NLF1 Type)

•High rigid precision mechanism. Equip with highly efficient servo motor to make sure feeding accuracy.
•Structure and NC electric controller conform to human technology.
•Auto detect material and press link for easy operation.
•Compact upper roller set easy opened to clean.
•Feeding line easy to adjust by using worm gear screw jacks.
•Hydraulic expand uncoiler easy to save manpower and more safe.
•Hydraulic coil car save manpower and easy to operate for one man.(Option)
•Uncoiler, Straightener and Feeder combination save space occupation.

Specification

三合一整平送料機 (NLF1 )
Reel Straightener Feeder (NLF1 Type)

產品型號
Model

NLF1-

300A

400A

500A

600A

700A

800A

300B

400B

500B

600B

700B

800B

最大材料寬度 Max. material width (mm)

60~300

60~400

60~500

60~600

60~700

60~800

60~300

60~400

60~500

60~600

60~700

60~800

材料厚度 Material thickness (mm)

0.3~2.3

0.3~3.2

最大料寬下之料厚範圍 Thickness range under max. width (mm)

W

300

400

500

600

700

800

300

400

500

600

700

800

T

0.3~2.0

0.3~1.6

0.3~1.4

0.3~1.2

0.3~1.0

0.3~0.8

0.3~2.8

0.3~2.5

0.3~2.3

0.3~2.0

0.3~1.6

0.3~1.2

最大料厚下之最大料寬 Max. width under max. thickness (mm)

T

2.3

3.2

W

220

250

料架荷重 Max. coil weight (kg)

3000

5000

3000

5000

料架馬達 Uncoiler motor (HP)

2

3

2

3

伺服馬達 Servo motor (KW)

AC 4.5

AC 6.0

AC 4.5

AC 6.0

捲料內徑 Coil inner diameter range(mm)

480~520

最大捲料外徑 Max. coil outer diameter (mm)

1200

1500

1200

1500

最大速度 Max. Feed speed (M/min)

18

氣壓放鬆最快速度 Max. pneumatic release SPM

90SPM

標準送料精度 Feed accuracy (mm)

±0.20 (模具需具定位銷)Die needs pilot pin

整平滾輪 Straighten roller (mm)

48 * 7 、上4 / 3Upper4 / Lower3

60 * 7 、上4 / 3Upper4 / Lower3

送料滾輪 Feed roller (mm)

75 * 2

75 * 1 (Upper)90 * 1 (Lower)

標準送料高度
Standard material line height (mm)

1100 ± 100

料架擴張方式 Uncoiler expand way

油壓式 Hydraulic operation

料架動力方式 Uncoiler power

主動式 Master

料架感應方式 Coil sensor

光電感應 Photo sensor

適應材質 Material

SPCC

材質表面處理 Material treatment

N/A

空氣壓力 Clean air pressure

4-6 kg/cm2

台車 Coil car

選配 Option
