Flattening Machine

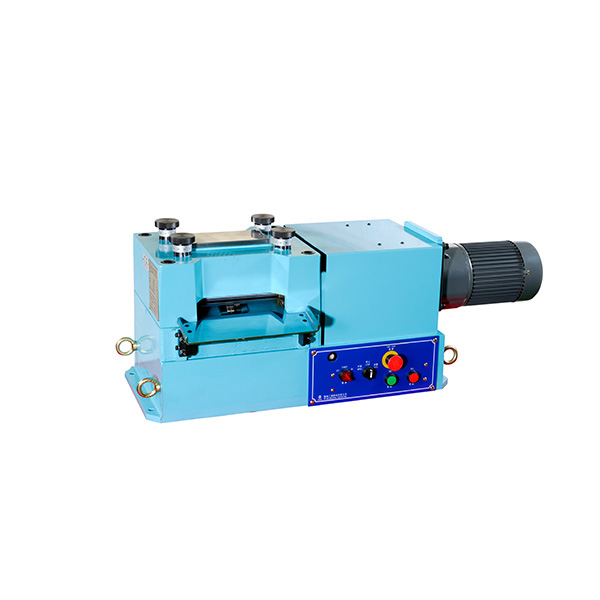

Precision Lelever (TP Type)

•Using alloy tool steel rollers with precision grinding under 0.6S surface roughness to extend life time.
•Roller transmits with universal joint to avoid hurt material surface. Auto lubrication during running.
•Equipped with bearing supported on roller middle for thicker material in high performance.
•Easily fine tune the accurate level value with 4 adjusting wheels.
•Using overload emergency stop to increase safety.
•Vary models to suit vary requirement of material straighten.

Specification

桌上型精密整平機
Precision Leveler (TP Type)

產品型號 Model

TP-200

TP-400

最大材料寬度
Max. material Width (mm)

200

400

材料厚度 Material thickness (mm)

0.3~3.2

整平速度 (60Hz) Straighten Speed (m/min)

11

整平滾輪直徑 Straighten roller diameter (mm)

19*19 (Upper9/Lower10)

馬達 Motor

1 HP

2 HP

潤滑 Lubrication

強制潤滑 Forced lubrication
