Rotary Surface Grinders
Rotary Surface Grinders

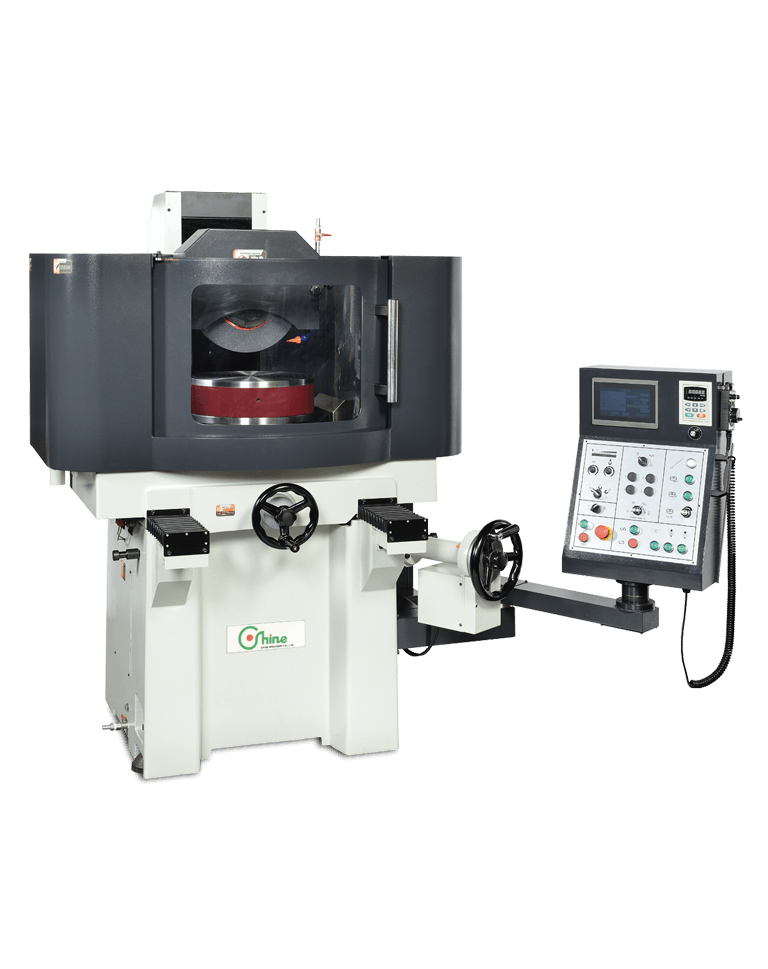

RG-400NC

Machine Feature
RG400 standard with auto velocity when the table moving

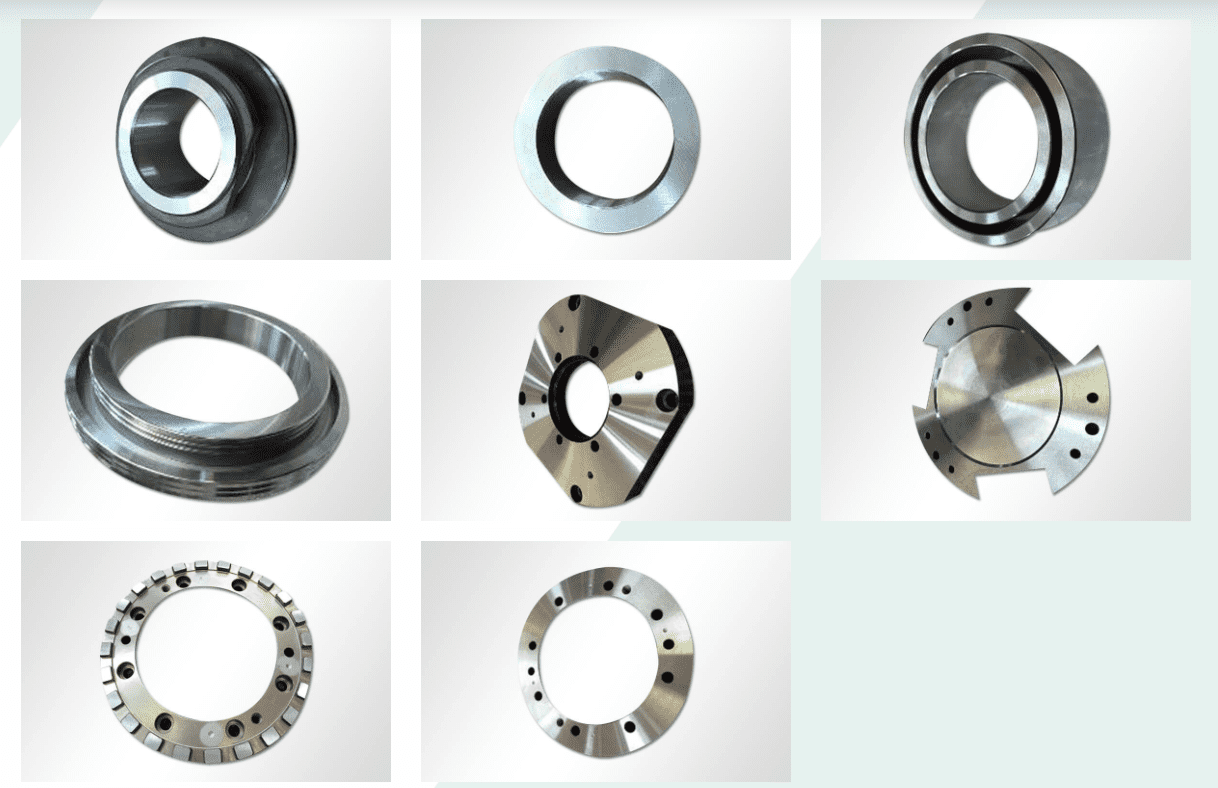

we provide kinds of information for different parts and material

Specification

Description RG-400NC
General capacity
Table size 400
Max.grinding radius 220
Spindle center to chuck surface Max.height 400
Rotary table
Rotary magnetic chuck Max. speed 200
Power 1KW
Grinding wheel
Wheel size(diaxwidthxbore) 355x38x127
Spindle motor 5HP
Grinding wheel speed(50/60HZ) 1450/1750 rpm
Vertical downfeed
Rapid feed 230 min/mm
Vertical MPG per revolution 0.01mm/MPG
Vertical MPG per graduation 0.001mm/0.005mm/0.01mm/MPG
Packing size
Net weight 1400/1600kgs
Packing size(LxWxH) 160x160x210cm

Standard Accessories

Grinding Wheel With Flange

Wheel Balancing Arbor

Vertical MPG Microfeed Device

Leveling Screw & Plate

Operation Manual

Wheel Balancing Base

Working Lamp

Wheel Dresser With Diamond

Toolboc & Tools

Optional

Permanent/ Electro Magnetic Chuck

Parallel Dressing Attachments

Demagnetizer

Coolant System W/Splash Guard

Coolant System & Dust Unit W/Splash Guard

LED Working Lamp



Mold
Machine
Vehicle
