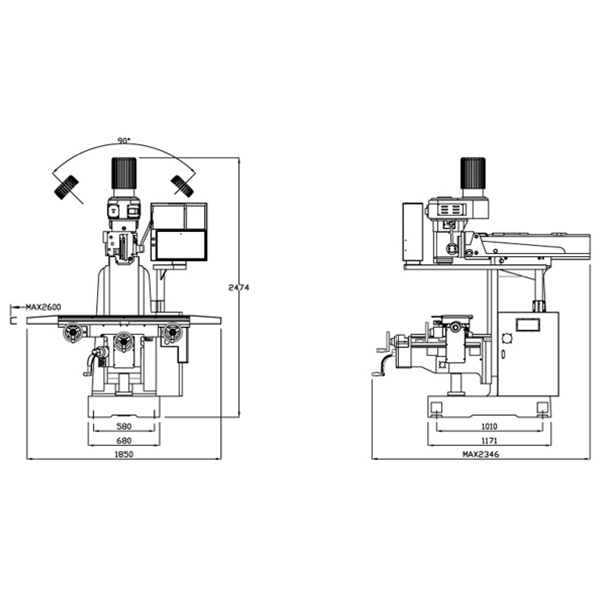

OX-750
OX-750NC (THREE-AXIS CNC CONTROL)

Table size: 1250 x 290 mm
Longitudinal travel: 750 mm
Cross travel: 400 mm
Vertical travel of knee: 400 mm
T-slots: 16x3x72 mm
Cutting feederate(X.Y): 0~5000mm/min
Feeding speed:0~1000 mm/min
Main spindle-AC inverter: 3.7kw (5HP)
X.Y.Z. servo motor & encoder: X, Y=0.75kw, Z=1kw
Lubricating pump: 150W
Electromagnetic pump: 40W
Spindle speed(non step inverter: 60~4000rpm
Swive angle of head: 45º (R&L)
Overarm travel: 550mm
Quill travel: 140mm
Distance of spinde to table: 120~520mm
Distance of spindle to colum surface: 140~750mm
Quill feed per revolution of spindle: 0.035/0.07/0.14mm
Net weight: 2000kgs
