OX-5

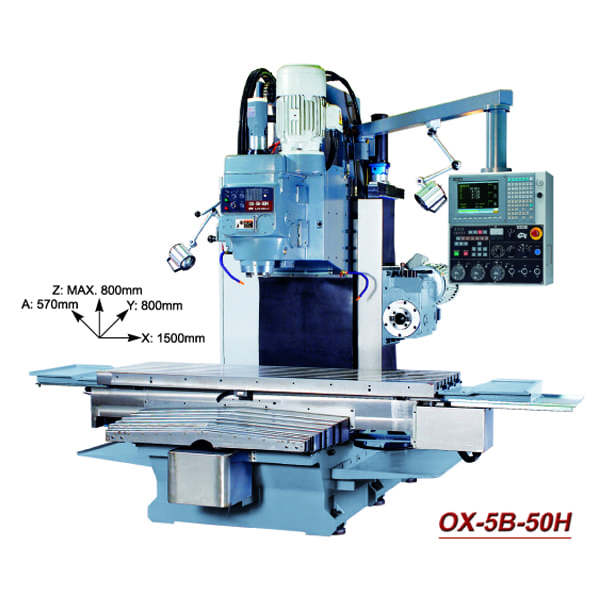

OX-5B-50H (FOUR-AXIS CNC CONTROL)

Table size: 1850 x 650 mm
Longitudinal travel: 1500 mm
Cross travel: 800 mm
Y slide way width: 1000 mm
Z Slide high: MAX 800 mm
Z Slide way width: 500 mm
Spindle taper: NT#50(BT)
Spindle motor: 7.5HP / 4P
Spindle speed: 40~3000 RPM
Feeding speed: 10~6000 mm/min
Ballscrew: Ø40 mm P=8 C3
Net weight: 5500 kgs
