Boring Heads System

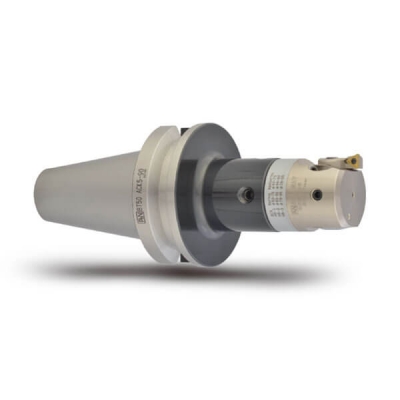

BCK Boring System-ACK Boring Holder + BCK Boring Head BT / NT Series
BT / NT 系列

Features
‧ BCK20 ~ BCK100 boring range is from 20mm ~ 203mm.
‧ The ACK holder is coolant type
‧ The cutter and insert must be ordered separately.

Specification

proimages/product/tool-holder/th-1/th-1-143-3.jpg

BCK Coolant

Specification

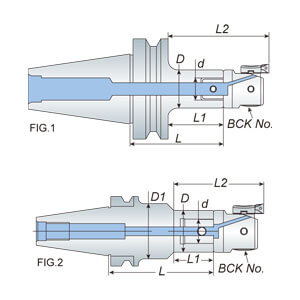

Model No. FIG. D D1 d L L1 L2 BCK
No.
Boring Range Weight (kg)
BT30 ACK1-070 2 19 31 11 70 40 72.5 BCK20 20~36 0.60
BT30 ACK2-040/080 1 24 - 14 40/80 15/55 50.5/90.5 BCK25 25~47 0.40/0.70
BT30 ACK3-040/075 1 31 - 18 40/75 15/50 55/90 BCK32 32~60 0.70/0.90
BT30 ACK4-040/075 1 39 - 22 40/75 15/50 62/97 BCK41 41~74 0.90/1.20
BT30 ACK5-065 1 50 - 28 65 40 97 BCK53 53~95 1.90
BT30 ACK6-065 1 64 - 36 65 40/50 111 BCK68 BCK100 68~150
100~203
3.00
BT40 ACK1-060/080 1 19 - 11 60/80 35/55 67.5/87.5 BCK20 20~36 1.10/1.20
BT40 ACK1-120/170 2 19 40 11 120/170 40 72.5 1.30/1.60
BT40 ACK2-060/080 1 24 - 14 60/80 35/55 70.5/90.5 BCK25 25~47 1.20/1.20
BT40 ACK2-100/120 1 24 - 14 100/120 75/95 110.5/130.5 1.30/1.40
BT40 ACK2-125/175 2 24 45 14 125/175 53 88.5 1.45/1.90
BT40 ACK3-060/080 1 31 - 18 60/80 35/55 75/95 BCK32 32~60 1.20/1.20
BT40 ACK3-100/120 1 31 - 18 100/120 75/95 115/135 1.30/1.50
BT40 ACK3-150/200 2 31 50 18 150/200 58 98 1.80/2.30
BT40 ACK4-080/100 1 39 - 22 80/100 55/75 102/122 BCK41 41~74 1.40/1.60
BT40 ACK4-125 1 39 - 22 125 100 147 1.80
BT40 ACK4-145/195 2 39 50 22 145/195 56 103 1.90/2.10
BT40 ACK5-080/100 1 50 - 28 80/100 55/75 112/132 BCK53 53~95 1.60/2.00
BT40 ACK5-135 1 50 - 28 135 110 167 2.50
BT40 ACK6-055 1 64 - 36 55 30 101 BCK68 BCK100 68~150
100~203
1.40
BT50 ACK1-100/125 1 19 - 11 100/125 65/90 97.5/122.5 BCK20 20~36 3.90/4.10
BT50 ACK1-170/220 2 19 40 11 170/220 40 73 4.50/4.90
BT50 ACK2-090/125 1 24 - 14 90/125 55/90 90.5/125.5 BCK25 25~47 4.00/4.10
BT50 ACK2-175/225 2 24 45 14 175/225 65 100.5 4.55/4.95
BT50 ACK3-090/125 1 31 - 18 90/125 55/90 95/130 BCK32 32~60 4.00/4.30
BT50 ACK3-200/240 2 31 50 18 200/240 80 120 4.95/5.30
BT50 ACK4-115/175 1 39 - 22 115/175 80/140 137/187 BCK41 41~74 4.40/5.00
BT50 ACK4-195/235 2 39 50 22 195/235 80 127 5.20/5.60
BT50 ACK5-090/135 1 50 - 28 90/135 55/100 112/137 BCK53 53~95 4.20/5.20
BT50 ACK5-195 1 50 - 28 195 160 217 6.10
BT50 ACK6-110 1 64 - 36 110 75 146 BCK68 BCK100 68~150
100~203
4.90
BT50 ACK6-170 1 64 - 36 170 135 206 6.10
BT50 ACK6-215 1 64 - 36 215 180 251 7.50
BT50 ACK6-255 1 64 - 36 255 220 291 9.00
BT50 ACK6-300 1 64 - 36 300 265 336 9.60
BT50 ACK6-350 1 64 - 36 350 315 386 11.50

Unit: mm
