Products

Collet Chuck

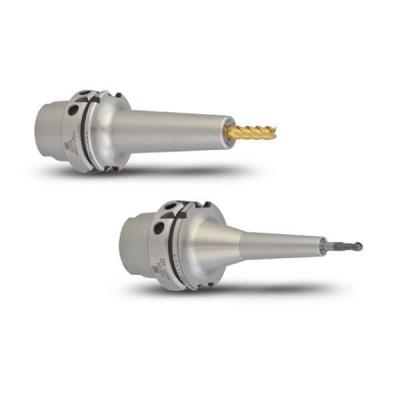

ADS High Speed Collet Chuck HSK Series
HSK 系列

Features
‧ ADS tool holder is suitable for high-speed and high precision cutting. Tool holder designed without nut could reduce cutting vibration.
‧ Wrench is attached for each ADS tool holder.
‧ Balancing: 30,000 r.p.m G2.5

Specification

Specification

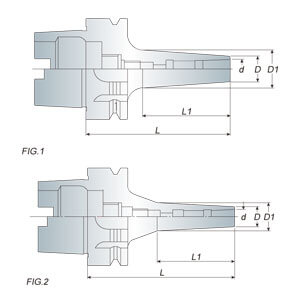

Model No. FIG. Clamping Range (d) D D1 L L1 Weight (kg)
HSK40A ADS06-090 2 1~6 13 18 90 48 0.50
HSK50A ADS08-085 1 3~8 16 23 85 50 0.60
HSK50A ADS08-125 2 3~8 16 29 125 91.5 0.80
HSK50A ADS10-095 1 3~10 21 27 95 59.5 1.00
HSK50A ADS12-125 1 3~12 23 37.5 125 96 0.80
HSK63A ADS06-095 2 2~6 13 18 95 50 0.90
HSK63A ADS06-120 2 2~6 13 19 120 60 1.00
HSK63A ADS06-150 2 2~6 13 21 150 76 1.20
HSK63A ADS08-100 1 3~8 16 25 100 64.7 1.00
HSK63A ADS10-095 1 3~10 21 27 95 59.5 1.00
HSK63A ADS10-120 1 3~10 21 29.6 120 82.6 1.10
HSK63A ADS10-150 1 3~10 21 33 150 114.5 1.60
HSK63A ADS12-125 1 3~12 23 33 125 87.6 1.20
HSK63A ADS12-150 1 3~12 23 36 150 114.5 1.70
HSK63A ADS16-125 1 5~16 28 38 125 89.5 1.30
HSK100A ADS06-130 2 2~6 13 20 130 65 2.50
HSK100A ADS06ADS08-130 1 3~8 16 28.5 130 89.8 2.50
HSK100A ADS06ADS10-130 1 3~10 21 30.5 130 101 2.60
HSK100A ADS06ADS12-130 1 3~12 23 32 130 77 2.70
HSK100A ADS06ADS16-130 1 5~16 28 37.6 130 82 2.90

Unit: mm
