Products

Tool Holder
AMG Double Power Chuck
BT / NT 系列

Features
AMG tooling system is suitable for high speed and heavy cutting simultaneously.
AMG tooling system is special designed for coolant type - JET THROUGH.
High precision clamping because of the design of needle roller bearing.
The spacer could make the flange & nut be tightened and provide exceptional rigidity.
Clamping the tools without collet is excellent for heavy cutting.
Wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5

Specification

Specification

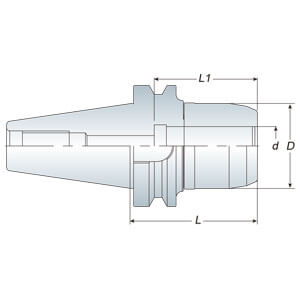

ModelNo. d D L L1 Wrench Weight(kg)
BT30 AMG12-080 12 46 80 67 WAMG12 1.10
BT30 AMG16-095 16 54 95 60 WAMG16 1.30
BT30 AMG20-095 20 58 95 70 WAMG20 1.60
BT30 AMG25-100 25 62 100 90 WAMG25 1.80
BT30 AMG32-095 32 70 95 90 WAMG32 2.00
BT40 AMG12-080 12 46 80 67 WAMG12 1.60
BT40 AMG12-105 12 46 105 67 WAMG12 2.00
BT40 AMG16-080 16 54 80 60 WAMG16 1.80
BT40 AMG16-105 16 54 105 60 WAMG16 2.30
BT40 AMG20-095 20 58 95 70 WAMG20 2.00
BT40 AMG20-105 20 58 105 70 WAMG20 2.30
BT40 AMG25-095 25 62 95 90 WAMG25 2.20
BT40 AMG32-090 32 70 90 90 WAMG32 2.30
BT40 AMG32-105 32 70 105 90 WAMG32 2.60
BT50 AMG12-105 12 46 105 67 WAMG12 4.60
BT50 AMG12-135 12 46 135 67 WAMG12 5.10
BT50 AMG12-165 12 46 165 67 WAMG12 5.80
BT50 AMG16-105 16 54 105 60 WAMG16 4.90
BT50 AMG16-135 16 54 135 60 WAMG16 5.50
BT50 AMG16-165 16 54 165 60 WAMG16 6.50
BT50 AMG20-105 20 58 105 70 WAMG20 4.90
BT50 AMG20-135 20 58 135 70 WAMG20 5.60
BT50 AMG20-165 20 58 165 70 WAMG20 6.50
BT50 AMG25-105 25 62 105 90 WAMG25 4.90
BT50 AMG25-135 25 62 135 90 WAMG25 5.70
BT50 AMG25-165 25 62 165 90 WAMG25 6.70
BT50 AMG32-105 32 70 105 90 WAMG32 5.00
BT50 AMG32-135 32 70 135 90 WAMG32 5.80
BT50 AMG32-165 32 70 165 90 WAMG32 6.70

Unit: mm

Accessories

SC Straight Collet<br>BT / NT Series

SC Straight Collet
BT / NT Series

Bearing Wrench<br>BT / NT Series

Bearing Wrench
BT / NT Series
