LS Series Programmable E.D.M. Series
CNC Micro E.D.M

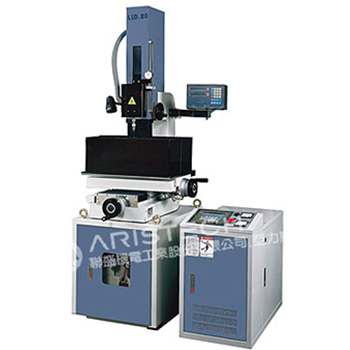

LSD-20

GENERAL FEATURES:

  1. Machines are designed in compliance with EC MACHINERY DIRECTIVE 89/392/EEC and EN 292 CODES for technical and safety aspects.

  2. Being for COMPACT DESIGN and thus saving space. equipped with 2(or 3) axes DIGITAL READOUT system for easy positioning (optional instrument).

  3. The LSD-25,30,35,65 provide Z-2 axis travel for large mould operating.

  4. Whole dligitize operate panel. And 10 sets of random access of paremeters in memory.

  5. It is able to drill the deep holes on the materials such as stainless steel, hard metal alloy, copper, aluminum, etc.
    With diameter from 0.30mm (0.0118") to 3.0mm(0.118").

  6. Use clean water for dielectric fluid, and with resing filtering system. Which is unharmful to human body.

STANDARD ACCESSORIES:

  1. 1 PC electrode drill chuck ø0.3-ø3.0mm.

  2. 1 PC electrode drill guide ø0.1mm.

  3. 10 Pcs electrode pipe ø1.0mm.

  4. 1 set tool box & kits.

  5. 1 unit filter bucker.

OPTIONAL ACCESSORIES:

  1. Digital Read Out & scales.

  2. Electrode guide ø0.2-ø3.0mm(0.1mm per step).

  3. Electrode pipe ø0.2-ø3.0mm(0.1mm per step).

  4. Precision electrode 3-JAW chuck.

  5. Air compressor.

  6. 1 unit filter bucker.

Specification



SERIES NO. \ SPECIFIC. - LSD-20 LSD-25 LSD-30

Work table (WxD)

mm/inch

450x210
(17.7x8.3)

450x210
(17.7x8.3)

600x300
(23.6x11.8)

Work tank (WxD)

mm/inch

790x490
(31.1x19.3)

790x490
(31.1x19.3)

860x560
(33.8x22)

X axis travle

mm/inch

300(11.8)

300(11.8)

350(13.8)

Y axis travle

mm/inch

200(7.9)

200(7.9)

250(9.8)

Ram servo travel Z1 Axis

mm/inch

345(13.6)

345(13.6)

345(13.6)

Work head travel Z2 Axis

mm/inch

0(0)

200(7.9)

200(7.9)

Hand wheel travel W-Axis

mm/inch

150(5.9)

150(5.9)

150(5.9)

Max.workpiece weight

kgs/lbs

100(220)

300(660)

300(660)

Electrode pipe diameter

mm/inch

ø0.2-ø3.0
(0.0078-0.118)

ø0.2-ø3.0
(0.0078-0.118)

ø0.2-ø3.0
(0.0078-0.118)

The max. heigh of workpiece

mm/inch

50-200(2-7.9)

50-400
(2-15.8)

50-400
(2-15.8)

Outside dimension

mm/inch

1040x1060x2000
(40.9x41.7x78.4)

850x900x1980
(33.5x35.5x78)

1040x1140x2100
(40.9x44.9x82.7)

Packing dimension

mm/inch

1230x1170x2220
(48.4x46.1x87.4)

1110x1305x2230
(43.7x51.4x87.8)

1185x1245x2240
(46.7x49x88.2)

Net Weight

kgs/lbs

750(1650)

750(1650)

900(1989)

SERIESNO. \ SPECIFIC.

-

LSD-35

LSD-65

Work table(WxD)

mm/inch

600x300
(23.6x11.8)

700x450
(27.6x17.7)

Work tank(WxD)

mm/inch

1030x650
(40.6x25.6)

1410x740
(55.5x29.1)

X axis travle

mm/inch

400(15.7)

650(25.6)

Y axis travle

mm/inch

300(11.8)

450(17.7)

Ram servo travel Z1 Axis

mm/inch

-

345(13.6)

Workhead travel Z2 Axis

mm/inch

200(7.9)

350(13.8)

Handwheel travel W-Axis

mm/inch

150(5.9)

150(5.9)

Max.workpiece weight

kgs/lbs

300(660)

500(1100)

Electrode pipe diameter

mm/inch

ø0.2-ø3.0
(0.0078-0.118)

ø0.2-ø3.0
(0.0078-0.118)

The max. heigh of work piece

mm/inch

50-400(2-15.8)

220-720(8.7-28.4)

Outside dimension

mm/inch

1200x1200x2050
(47.2x47.2x80.7)

1490x1365x2110
(58.7x53.8x83.1)

Packing dimension

mm/inch

1560x1340x2252
(61.4x52.8x88.7)

1652x1610x2240
(65x63.4x88.2)

Net Weight

kgs/lbs

900(1980)

1500(3300)



POWER SUPPLY UNIT:



SPECIFICATIONS \ SERIES NO.

30A

Nominal current

A

30

Total power input

KVA

3.5

Circuit system

-

Power MOS FET

Control axis

-

Z AXIS

Control system

-

10 steps cutting data

Display type

-

LED Displayed

Coordinate system (Positioning commands)

-

-

Jog speed

-

Manual

Least input increment
(X,Y axes)

mm/inch

0.005(0.0002")when
with linear scales

Outside dimension

mm/inch

1100x540x850
(43.3x21.3x33.5)

Packing dimension

mm/inch

1100x540x850
(43.3x21.3x33.5)

Net weight

kgs/lbs

170(374)

  *Specifications are subject to change without notice.
