CNC Engraving Machine

Double Column Machining Center

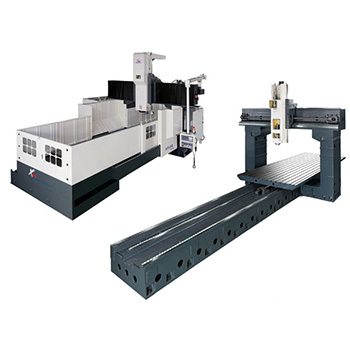

BMC-3224

Outstanding Features

The column and bridge are annealed and stress relieved to ensure structural stability.
Linear guideways on X and Y axes, box ways on Z axis.
High precision pre-loaded linear guideways feature low frictional co-efficient low stick-slip and high thrust force sensitivity ensuring dynamic movement accuracy.
6,000 RPM gear-driven spindle is standard.
32-tool arm-type ATC.
Extra wide door for easy loading and unloading of workpieces.
The ideal for: Automobile forming dies, plastic injection molds, machine parts machining, aerospace parts machining.

Specification

MODEL	BMC-3224
Travel	X axis travel	3200 mm
	Y axis travel	2700 mm
	Z axis travel	920 (1100) mm
	Spindle nose to table	200~1120 (200~1300) mm
	Distance between spindle center to bridge	475 mm
	Door Width	2350 mm
Spindle	Spindle speed	50~6000 rpm
	Spindle motor max. rating	18.5 (OPT. 26) kw
	Axis motor max. rating	7/7/7 kw
	Taper size	BT-50
Table	Working area	3200x2100 mm
	Max. loading	15000 kgs
	T-Slots (No. x Width x Pitch)	10x 22 x 200 mm
Feed rates	Rapids on X / Y/ Z axis	15/12/12 m/min
Feed rates	Max. cutting feedrate	1-6000 m/min
Tool Magazine	Number of tool	32 (OPT. 40/60)
	Type of tool	BT - 50
	Max. tool diameter	127 mm
	Max. tool weight	15 kgs
	Max. tool length	300 mm
	Tools to tools (change time)	8 sec
Accuracy	Positioning	JIS ±0.005/300 mm
	Repeatability	±0.005 mm
	Roundness	0.03/300 mm
Dimensions	Air source required	6 kgs/cm2
	Machine weight (Net)	38000 kgs
	Power source required (KVA.)	50 KVA
	Floor space (L x W x H)	8470x5240x4600 mm

Standard Accessories	Optional Accessories
Fanuc 18i-MB controller	Controller (Heidenhain, Seimens, Mitsubishi)
Spindle 6000rpm (gear)	Z-axis travel up to 1100mm
Automatic lubricating system	Z-axis travel up to 1500mm (for direct drive w/ Z-axis linear guide way)
Automatic lubricating oil collector for 3 axes	Heighten column by 200mm
Spindle and gear transmission/temperature control	ATC (40, 60 tools)
Twin screw and one link type chip conveyor with tank	Spindle 8000rpm (belt-drive)
Heat exchanger for electric cabinet	30/35HP spindle motor upgrade (Fanuc 32xx only)
Foot switch for tool clamping/unclamping	Ball screw cooling system (Y/Z axis)
32 tools arm-type tool change	Ladder for maintenance
Spindle oil cooler	X-axis linear guide roller type (Schneeberger)
Full splash guard	Z-axis linear guide way
Air blow for chip (M Code)	Direct drive spindle 8000rpm or 10000rpm (for linear guide way only.)
X & Y linear guideway (roller type)	Y-axis linear guide roller type (Schneeberger)
Ball screw cooling system (X-axis)	90° angular head
Foundation bolt kit	Manual universal head
Work light	Extended head with clamping/unclamping tool
RS-232 interface (10 meters)/RJ45	Auto tool length measurement
Oil skimmer	Auto workpiece Measurement device
Maintenance and operational manual	Coolant through spindle
Twin hydraulic counter weight cylinders	Linear scales feedback (Heidenhain/Fagor)
	CNC rotary table & tailstock
