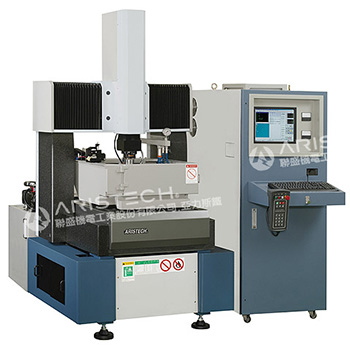

MD-22 CNC Micro E.D.M
LS Series Programmable E.D.M. Series
MD-22

APPLICATIONS:

  1. Precision micro die & mold machining. As micro die & mold for micro fastener. Fiber elements. Micro couplers.

  2. Super micro hole machining. As micro holes & nonmicircular hole for tiny nozzle, micro probe or micro electrode for EDM ORM-CMM.

Specification

MODEL


MD-22/10A

Machine Body


XYZ + C-AXES

Machining Method


Flushing/Submerged

Work Tank Size (W x D x H)

mm

660x450x280

Max. Work Piece Weight

kg

20

X.Y.Z Axes Travel (By AC Linear Motor)

mm

250 x 250 x 150

C - Axis Travel (By AC Servo Motor)


360°(Degree) Minimum 0.02°

Electrode Hold Plate to Table Distance

mm

170~320

Posting Resolution

μm

1

Minimum Diameter of Machining

μm

ø10

Best Roughness of Surface

μmRa

Ra 0.2~0.4

Max. Electrode Loading

kg

5

Max. Work Piece Loading

kg

20

Outside dimensions (W x D x H)

mm

1,150x1,100x2,200

Machine Weight

kg

1500

A.3-Axes Liner Motors, & 0.1μm Liner Scales.
B. Granite (DIN.87600) Material for Machine Construction.
C. WEGD Electrode Forming Device (Incl. Double DC Switching Power,3kg 0.1mm Dia Brass Wire & Wire Collector Box)

FILTERING FLUID SUPPLY UNIT:

Filtering Tank Capacity

180

Filtering element

mm

Paper Filter 150øx33øx360L

Outside Dimensions (W x D x H)

mm

500x600x600H

Net Weight

kg

100kg

POWER SUPPLY UNIT:

Circuit System


Micro Power Circuit (G-Box)

Output Current Range


0.2A-10A

Total Power Input

kva

3.5

Outside dimensions (W x D x H)

mm1,290x660x1,680

Net Weight

kg

200

CNC CONTROLLER UNIT:

Data Input


Keyboard,Mouse,USB,NET,RS232 Incl

Display Type


15”LCD TFT Monitor

Axes Control system


Closed loop with linear Scale

Control Axis


X,Y,Z C-Axes (4axes& Over)

C-Axis Speed


Max. 3,000RPM

Minimum Setting unit

µm

0.1

Dram Memory& Device


512Mb, & With Hard Disc 40GB.

Interpolation


Linear/Circular/Orbital

Command system


Abs./ Inc.

Editing


Multi-Display & Editing

Graphic Functions


2D,XY Plane,3D,Background,Path,Sparking

Machining feed control


Linear Motor/ Const. Feed

Processing Sequence Number


N000-N3000

Coordinate Number


60

Forming Sparking (Pulse) Power


0.3-200 µs.

MPG Increment Speed


x1, x10, x50, x100

Total AC power input

KVA

¢3 200/380/415/440/600V. ± 10%/5.0

*Specifications subject to change without notice.
