Category： Linear Guideway motor stator

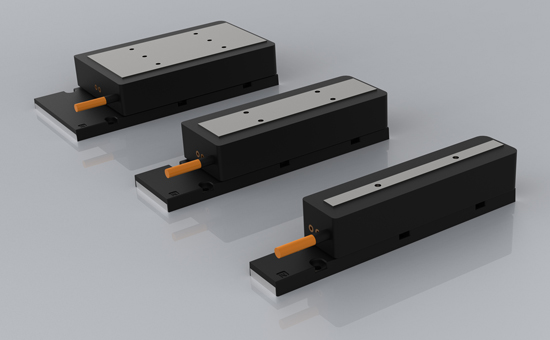

DPG series from CSK magnetic linear motion belongs to high speed and high thrust linear motor with high magnetic density. Magnetic rail adopts an integral potting process, Avoiding magnetic steel due to long-term temperature influence resulting in performance degradation can also prevent the damage of electrostatic sparks, more durable, more safe.
High speed up to 5m/s
High thrust density
Smooth operation, no obvious frustration
Provide accurate magnetic suction
Peak thrust: 187.7N~2440.8N
Sustained thrust: 25.3N~691.6N
The trip can be extended indefinitely
The performance parameters are verified by experiment and are accurate and reliable
Hall sensor optional
Click on linear motion manufacturer to learn more.
Specification Of DPG Series Linear Motor Stator-With Iron Core Linear Motor
Specification |
|
| Motor Coil Model | |
| Series Name | DPG Series |
| Width Specification | 35，45，55，65，75，95 |
| Length Specification | C1 ,C2 ,C3 , C4 |
| Special Marking | Unmarked:CSK standard specification Special:Unmarked,A,B ... (Please contact CSK when customers have special requirements ) |
| Magnetic Track Model | |
| Series Name | DPG Series |
| Width Specification | 35，45，55，65，75，95 |
| Length Specification | M128 M192 |
| Special Marking | Unmarked:CSK standard specification Special:Unmarked,A,B ... (Please contact CSK when customers have special requirements ) |
| Hall Model | |
| Series Name | HA:Hall Code |
| Category Code | D:Linear motor |
| Supporting Code | PG: for DPG Series |
