Medical Biotechnology Valve (Medical)

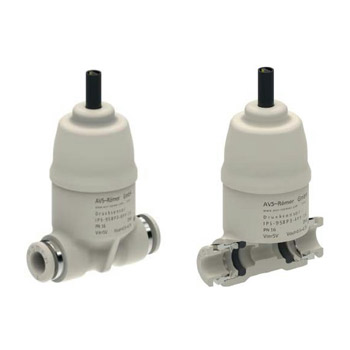

Pressure Sensor
Type IPS
minimal dead space
temperature-compensated elavation electronics
materials and constructional design especially optimised for food applications
other tube connections
Specification
| GENERAL | ||
|---|---|---|
| Constructional design | Ceramic pressure measuring cell | |
| Product name | Inline pressure sensor | |
| Product type | ITS-958P3-... | |
| Nominal diameter | DN 2.5 up to DN 6 | |
| Connection | ELSA plug fittings for pipe/tube OD 4 to OD 8 | |
| Ambient temperature | 0°C to + 60°C | |
| Medium temperature | 0°C to + 140°C | |
| Medium viscosity | up to approx. 35 mm²/s | |
| Body material | PPSU (KTW- approved, NSF- certified) | |
| Measuring cell material | Al₂O₃ | |
| O-ring material | FKM (FDA-compliant) or EPDM (NSF-, KTW-approved) | |
| Mounting method | by spring clip, internal widthØ 18-22 mm (not included in scope of supply) | |
| Mounting position | Preferably upright | |
| Approval | NSF/ANSI 169 | |
| PNEUMATIC - HYDRAULIC | ||
|---|---|---|
| Nominal pressure | up to PN 16 in accordance with the specifi cation table | |
| Pressure range | 0 bar up to allowable operating pressure OP in accordance with the specifi cation table | |
| Flow rate | Kv-value in accordance with the specifi cation table | |
| Medium | Gases or liquids which do not corrode the materials specifi ed | |
| ELECTRIC | ||
|---|---|---|
| Supply voltage | 5 VDC | |
| Voltage tolerance | ± 10% | |
| Output voltage | 0.5-4.5 VDC (ratiometric) | |
| Electrical Connection | 0.75 m 3-pole screened cable (LiYCY 3xAWG26), strand ends pre-tinned. | |
| Protection class | IP65 | |
| ACCURACY | ||
|---|---|---|
| Total error | ± 1.5 %FS | |
| Temperature error zero point | < ± 0.02 % FS/K | |
| Temperature margin of error | -0.012 % FS/K | |
| Response time | < 2 ms | |
