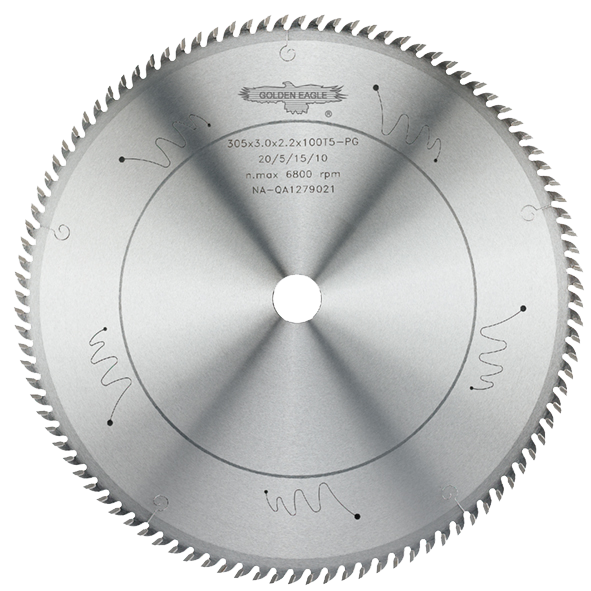

Plexiglass saw is applied to angle cutting for acrylic sheet (PMMA), and the cutting goes without noise. Plexiglass saw can work with fixture for fixing the cutting material while the feed force is being adjusted, so the precise cutting is the best option for LED backlight unit cutting
|
|
Diameter |
Kerf |
Plate |
Bore |
Teeth |
Grind |
ltem ID |
|
|
195 |
2.0 |
1.5 |
25.4 |
90 |
LRS |
A19509020001 |
|
◎ |
255 |
2.0 |
1.5 |
25.4 |
84 |
LRS |
A25508420001 |
|
◎ |
255 |
2.0 |
1.5 |
25.4 |
100 |
LRLRS |
A25510020001 |
|
◎ |
255 |
2.0 |
1.5 |
25.4 |
120 |
LRLRS |
A25512020001 |
|
|
305 |
2.0 |
1.5 |
25.4 |
100 |
LRLRS |
A30510020001 |
|
|
305 |
2.0 |
1.5 |
25.4 |
120 |
LRLRS |
A30512020001 |
|
◎ |
305 |
2.6 |
1.8 |
25.4 |
100 |
LRLRS |
A30510026001 |
|
◎ |
305 |
3.0 |
2.2 |
25.4 |
100 |
LRLRS |
A30510030001 |
|
◎ |
305 |
3.0 |
2.2 |
25.4 |
120 |
LRLRS |
A30512030001 |
|
◎ |
355 |
2.6 |
1.8 |
25.4 |
120 |
LRLRS |
A35512026001 |
|
◎ |
355 |
3.0 |
2.2 |
25.4 |
120 |
LRLRS |
A35512030001 |
|
◎ |
355 |
3.2 |
2.4 |
25.4 |
120 |
LRLRS |
A35512032001 |
|
◎ |
405 |
3.2 |
2.4 |
25.4 |
120 |
LRLRS |
A40512032001 |
|
◎ |
405 |
3.0 |
2.2 |
25.4 |
120 |
LRLRS |
A40512030001 |
◎Could be customized to your requirement.
