886-7-3909928
886-7-3909915
5F.-B2, No.502, Jiuru 1st Rd., Sanmin Dist.,Kaohsiung City 80764, Taiwan
www.sawtek.com.twProducts

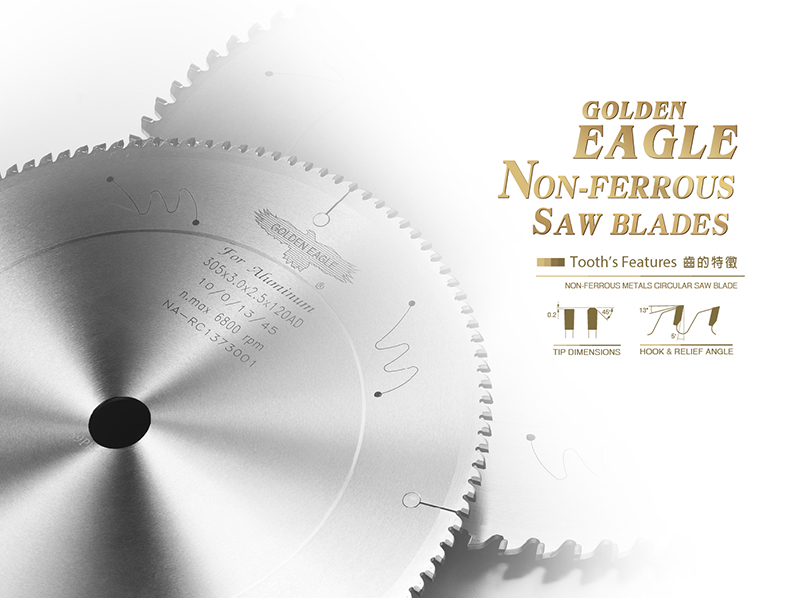

Saw plate are treated with professional heat-treatment. used for cutting non-ferrous metals. max. diameter to 1200mm. precision grinding and unique angle design. smooth cutting surface, and clean cuts.
Application

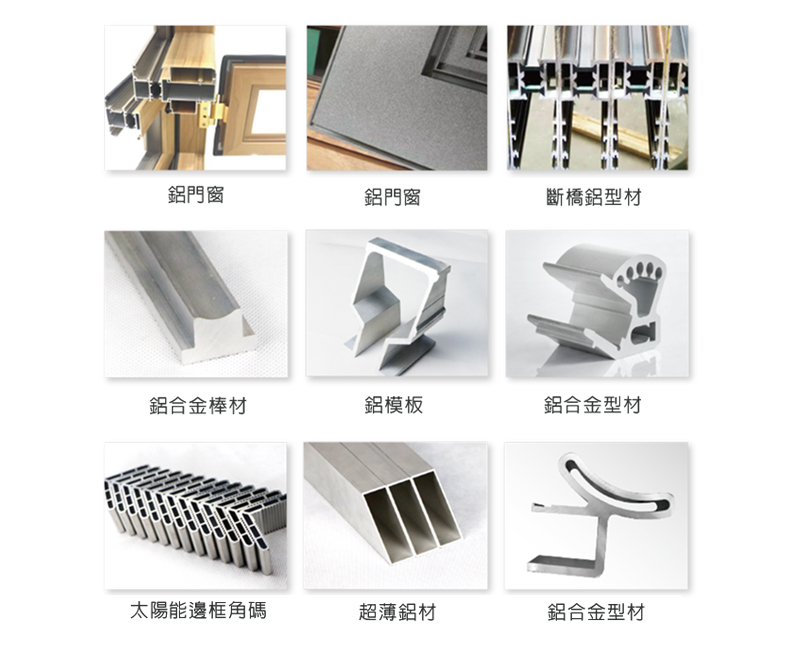

For Aluminum profile material
|
|
Diameter |
Kerf |
Plate |
Bore |
Teeth |
Grind |
Item ID |
|
|
255 |
2.0 |
1.5 |
25.4 |
100 |
TCG |
NF25510020001 |
|
★ |
255 |
2.6 |
2.2 |
25.4 |
100 |
TCG |
NF25510026001 |
|
★ |
255 |
2.6 |
2.2 |
25.4 |
120 |
TCG |
NF25512026001 |
|
|
305 |
2.0 |
1.6/2.0 |
25.4 |
120 |
TCG |
NF30512020001B |
|
|
305 |
2.2 |
1.8 |
25.4 |
80 |
TCG |
NF30508022001 |
|
◎ |
305 |
2.2 |
1.8 |
25.4 |
100 |
TCG |
NF30510022001 |
|
◎ |
305 |
2.2 |
1.8 |
25.4 |
120 |
TCG |
NF30512022001 |
|
|
305 |
2.6 |
2.0 |
25.4 |
60 |
ATB |
NF30506026001 |
|
★ |
305 |
2.6 |
2.0 |
25.4 |
80 |
TCG |
NF30508026001 |
|
★ |
305 |
3.0 |
2.5 |
25.4 |
100 |
TCG |
NF30510030001 |
|
★ |
305 |
3.0 |
2.5 |
25.4 |
120 |
TCG |
NF30512030001 |
|
◎ |
355 |
3.0 |
2.5 |
25.4 |
60 |
ATB |
NF35506030001 |
|
★ |
355 |
3.0 |
2.5 |
25.4 |
80 |
ATB |
NF35508030001 |
|
★ |
355 |
3.0 |
2.5 |
25.4 |
100 |
TCG |
NF35510030001 |
|
★ |
355 |
3.0 |
2.5 |
25.4 |
120 |
TCG |
NF35512030001 |
|
◎ |
355 |
3.2 |
2.6 |
25.4 |
80 |
TCG |
NF35508032001 |
|
◎ |
355 |
3.2 |
2.6 |
25.4 |
100 |
TCG |
NF35510032001 |
|
◎ |
355 |
3.2 |
2.6 |
25.4 |
120 |
TCG |
NF35512032001 |
|
◎ |
405 |
3.2 |
2.7 |
25.4 |
60 |
TCG |
NF40506032001 |
|
★ |
405 |
3.2 |
2.7 |
25.4 |
80 |
TCG |
NF40508032001 |
|
★ |
405 |
3.2 |
2.7 |
25.4 |
100 |
TCG |
NF40510032001 |
|
★ |
405 |
3.2 |
2.7 |
25.4 |
120 |
TCG |
NF40512032001 |
|
|
405 |
3.4 |
2.8 |
25.4 |
100 |
TCG |
NF40510034001 |
|
|
405 |
3.4 |
2.8 |
25.4 |
120 |
TCG |
NF40512034001 |
|
|
450 |
4.0 |
3.2 |
30 |
80 |
TCG |
NF45008040030 |
|
◎ |
450 |
4.0 |
3.2 |
30 |
100 |
TCG |
NF45010040030 |
|
◎ |
450 |
4.0 |
3.2 |
30 |
120 |
TCG |
NF45012040030 |
|
◎ |
455 |
3.4 |
2.6 |
25.4 |
72 |
CTC |
NF45507234001 |
|
★ |
455 |
3.4 |
2.8 |
25.4 |
80 |
TCG/CTC |
NF45508034001 |
|
★ |
455 |
3.4 |
2.8 |
25.4 |
100 |
TCG |
NF45510034001 |
|
★ |
455 |
3.4 |
2.8 |
25.4 |
120 |
TCG |
NF45512034001 |
|
|
500 |
4.4 |
3.8 |
30 |
80 |
TCG |
NF50008044030 |
|
|
500 |
4.4 |
3.8 |
30 |
100 |
TCG |
NF50010044030 |
|
◎ |
500 |
4.4 |
3.8 |
30 |
120 |
TCG |
NF50012044030 |
|
◎ |
505 |
3.6 |
3.0 |
25.4 |
80 |
TCG |
NF50508036001 |
|
◎ |
505 |
3.6 |
3.0 |
25.4 |
100 |
TCG |
NF50510036001 |
|
◎ |
505 |
3.6 |
3.0 |
25.4 |
120 |
TCG |
NF50512036001 |
|
|
550 |
4.4 |
3.8 |
30 |
120 |
TCG |
NF55012044030 |
|
◎ |
550 |
4.8 |
4.0 |
30 |
120 |
TCG |
NF55012048030 |
|
◎ |
550 |
4.8 |
4.0 |
30 |
132 |
TCG |
NF55013248030 |
|
|
600 |
4.8 |
4.0 |
30 |
120 |
TCG |
NF60012048030 |
|
◎ |
600 |
5.0 |
4.2 |
30 |
120 |
TCG |
NF60012050030 |
|
|
600 |
5.0 |
4.2 |
30 |
144 |
TCG |
NF60014450030 |
|
|
610 |
4.0 |
3.4 |
25.4 |
80 |
TCG |
NF61008040001 |
|
◎ |
610 |
4.0 |
3.4 |
25.4 |
100 |
TCG |
NF61010040001 |
|
◎ |
610 |
4.0 |
3.4 |
25.4 |
120 |
TCG |
NF61012040001 |
|
|
650 |
5.0 |
4.2 |
30 |
120 |
TCG |
NF65012050030 |
|
|
650 |
5.2 |
4.4 |
30 |
120 |
TCG |
NF65012052030 |
|
◎ |
650 |
5.2 |
4.4 |
30 |
144 |
TCG |
NF65014452030 |
|
|
700 |
5.6 |
4.6 |
30 |
120 |
TCG |
NF70012056030 |
|
|
800 |
6.0 |
5.0 |
30 |
120 |
TCG |
NF80012060030 |
|
|
860 |
6.0 |
5.0 |
45 |
60 |
TCG |
NF86006060045 |
|
|
900 |
6.4 |
5.4 |
30 |
120 |
TCG |
NF90012064030 |
|
|
960 |
6.0 |
5.0 |
60 |
60 |
TCG |
NF96006060060 |
|
|
960 |
6.0 |
5.0 |
60 |
80 |
TCG |
FN96008060060 |
◎Could be customized to your requirement.
