Square End Mill
UPET
UPET
Commodity Brief
4-Flute Heavy-Duty Operation Type
#Smooth chip evacuation for high-speed, high-hardness machining.
#Special groove design, cutting discharge and excellent cutting space.
#It can directly perform roughing to fine machining on heat-treated molds to reduce the number of tool changes.
Specification
Product Introduction
| Carbon Steel | Alloy Steel | Prehardened Steel | Stainless Steel | Aluminum Alloy | Copper | Resin | Graphite | Hard Brittle Material | Heat Resistant Alloy | Hardened Steel | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 〜 55HRC |
～ 65HRC |
～ 70HRC |
||||||||||
| ◎ | ◎ | ◎ | ○ | ○ | ○ | ○ | ○ | |||||

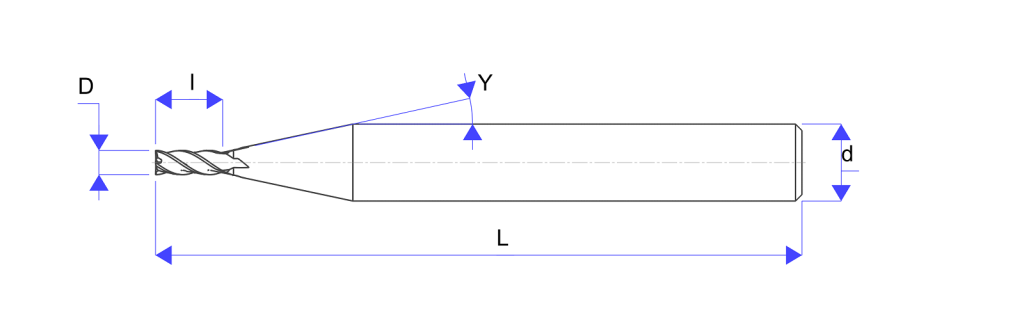

| Code No. | (D) Dia. |
(l) Length of Cut |
(γ) Neck Taper Angle |
(d) Shank Dia. |
(L) Overall Length |
|---|---|---|---|---|---|
| 3030 | 3 | 8 | 12 | 4 | 50 |
| 6030 | 3 | 8 | 12 | 6 | 50 |
| 4040 | 4 | 10 | 4 | 50 | |
| 6040 | 4 | 10 | 12 | 6 | 50 |
| 6050 | 5 | 13 | 12 | 6 | 50 |
| 6060 | 6 | 15 | 6 | 50 | |
| 8080 | 8 | 20 | 8 | 60 | |
| 10100 | 10 | 25 | 10 | 75 | |
| 1010030 | 10 | 30 | 10 | 75 | |
| 12120 | 12 | 30 | 12 | 75 | |
| 16160 | 16 | 40 | 16 | 100 | |
| 1616048 | 16 | 48 | 16 | 100 | |
| 20200 | 20 | 50 | 20 | 100 |
