Square End Mill
UXNE
UXNE
Commodity Brief
4-Flute Long Neck End Mill
#The special groove design has excellent cutting space for cutting discharge.
#Excellent coating, wear resistance, long tool life.

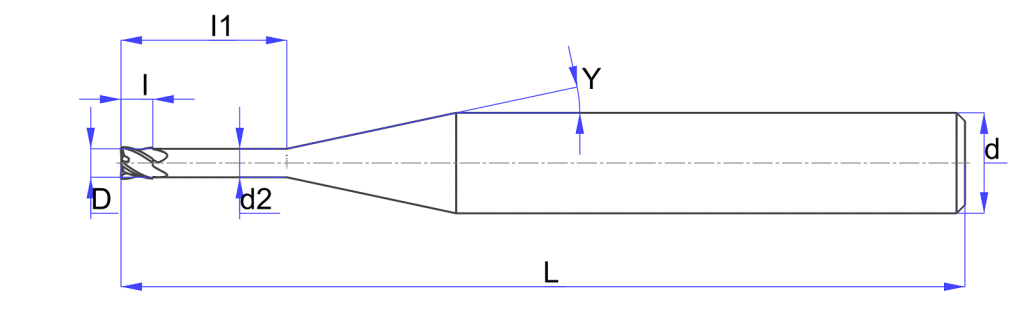

Specification
Product Introduction
| Carbon Steel | Alloy Steel | Prehardened Steel | Stainless Steel | Aluminum Alloy | Copper | Resin | Graphite | Hard Brittle Material | Heat Resistant Alloy | Hardened Steel | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 〜 55HRC |
～ 65HRC |
～ 70HRC |
||||||||||
| ◎ | ◎ | ◎ | ○ | ○ | ○ | ○ | ○ | |||||
| Code No. | (D) Dia. |
(l1) Effective Length |
(l) Length of Cut |
(d2) Neck Dia. |
(γ) Neck Taper Angle |
(d) Shank Dia. |
(L) Overall Length |
|---|---|---|---|---|---|---|---|
| 401004 | 1 | 4 | 1.5 | 0.95 | 12° | 4 | 50 |
| 401006 | 1 | 6 | 1.5 | 0.95 | 12° | 4 | 50 |
| 401008 | 1 | 8 | 1.5 | 0.95 | 12° | 4 | 50 |
| 401010 | 1 | 10 | 1.5 | 0.95 | 12° | 4 | 50 |
| 401012 | 1 | 12 | 1.5 | 0.95 | 12° | 4 | 50 |
| 401014 | 1 | 14 | 1.5 | 0.95 | 12° | 4 | 50 |
| 401016 | 1 | 16 | 1.5 | 0.95 | 12° | 4 | 50 |
| 401504 | 1.5 | 4 | 2.3 | 1.45 | 12° | 4 | 50 |
| 401506 | 1.5 | 6 | 2.3 | 1.45 | 12° | 4 | 50 |
| 401508 | 1.5 | 8 | 2.3 | 1.45 | 12° | 4 | 50 |
| 401510 | 1.5 | 10 | 2.3 | 1.45 | 12° | 4 | 50 |
| 401512 | 1.5 | 12 | 2.3 | 1.45 | 12° | 4 | 50 |
| 402006 | 2 | 6 | 3 | 1.94 | 12° | 4 | 50 |
| 402008 | 2 | 8 | 3 | 1.94 | 12° | 4 | 50 |
| 402010 | 2 | 10 | 3 | 1.94 | 12° | 4 | 50 |
| 402012 | 2 | 12 | 3 | 1.94 | 12° | 4 | 50 |
| 402508 | 2.5 | 8 | 3.7 | 2.4 | 12° | 4 | 50 |
| 402512 | 2.5 | 12 | 3.7 | 2.4 | 12° | 4 | 50 |
