Bellow Cover
Flexible Armor Protective Cover

Bellow Cover

Flexible Armor Protective Cover

This type of protective cover presents a variety of changes, which can be changed according to changes in machine tool installation requirements.

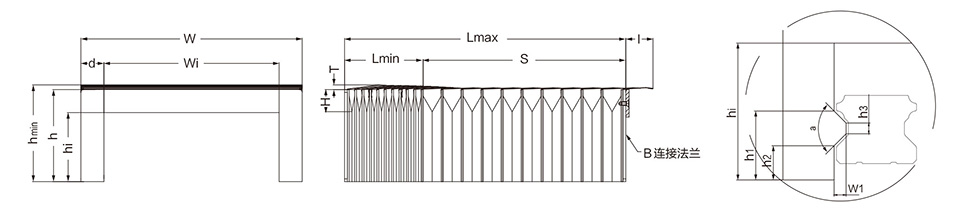

Schematic diagram of technical parameters of armor shield
K is the buckle of the armor piece. When the expansion space is not enough, it must be cross-assembled

T is the thickness of the armor piece after the compression of the shield

Lmax = Maximum stretch of protective cover

Lmin = minimum compression of the protective cover

S = stroke length

W = outer width of protective cover

Wi = inner width of protective cover

h = outer height of protective cover

hi = Inner height of protective cover

H = folding height of protective cover

n = fold of protective cover

D = cloth of protective cover

A = Protective cover skeleton

B = Flange at both ends of protective cover

Specification

Flexible armor type protective cover order parameter table and receipt form

Parameter code Code	Parameter name Des	Parameter Value Figure	Test result (filled by our company) Test result by Kirus	Remark Remark	Description Remark
Lmax	Stretched out length of protective cover				Machine travel range ( required) Machine travel range (Not null)
Lmin	Protective cover minimum stretched Compressed length
S	Shield stroke Travel distance				Machine maximum distance (optional) Machine max distance (Optional)
I	Armor plate projecting length Upper steel tail part length				Optional Optional
W	An outer shield width Outer width				Required Not Not
Wi	Width inner shroud Inner width				Required Not Not
h	An outer shroud high Outher height				Required Not Not
h1	Inner shroud high Inner height				Required Not Not
hmin	The minimum height of installation of the machine The min height of machine assembing				Optional Optional
H	Shield off the high Folding height				Range: 10mm-55mm (optional) Range: 10mm-55mm (Optional)
B	Connecting flange Flange material				Material / surface treatment (optional) Material and surface treament (Optional)
	Fire protection Fire-resistant or not	Yes No	Yes No		Optional Optional
	Type of guide Guide rail item No		-		Model or size (with photos) (Required Not null / attched)
	Running speed of machine tool		-		Required Not Not
	Installation Assemble way		-		Horizontal / Vertical / Other (Optional) Vertical / horizontal / others (Optional)
	Installation Machine Model Equipment item No		-		Optional Optional
	Use Environment Enviorment		-		Whether there is a lot of debris (optional) Scrap or not (Optional)
Order unit Company name			Shipping Address Company address
Contact Contact way			Shipping Method Shipping way	AirGround Freight Urgent Urgent Other____
The above data, CAD drawings or three-dimensional drawings of machine tools (.stp / .xt / .igs and other formats) must be provided when ordering, and our company can carry out evaluation design. Pls offer above demensions, CAD drawings or Machine 3D drawings (.stp or .xt or .igs), then our engineer can design Such as ordering shield have special requirements, please fill in the remarks column contact or communicate directly with our company; if no requirement, in accordance with our standard production Pls remark if you have speical demand, or we will follow Krius regulation Guide portions protection design must provide detailed drawings described Krius need detailed drawings for the protected pars of machine If the orderer provides complete drawings of the protective cover, please indicate whether there is a margin between the guide rail and Pls mark are there some tolerance for guide rail and bellow cover if customer offer complete drawings We will send the order issued together with the product at the time of delivery We will take the order details with goods shippment together
