The TLG series towline is based on the TL series towline to increase the load capacity and stroke length of the towline. It can carry heavy cables and tubing. The length of the free suspension is larger, which is
more suitable for working mother machines and mobile machinery. Wait for all mechanical movements in the transmission mode.
Due to the exquisite appearance of this product, it can enhance the overall artistic effect of the machine tool equipment to a greater extent, and enhance the competitiveness of the machine tool and mechanical equipment in the international market.
The cover plate of the TLG series is a fully enclosed shield
TLG selects high-quality aluminum alloy profiles to meet different needs of customers. The width of its support plate can reach 1200mm. Even at the highest speed and travel speed,
it can ensure the internal separation of the towline is impeccable and the best cable Protection status.
TLG strip with plastic spacers, may be moved freely adjust the position, various segmentation for many types of cable case; towline backplate section is newly developed "Silver Star guard", made of aluminum alloy,
which The appearance is beautiful, the stability is extremely high, the cable protection is more sturdy, and the towline can be opened at any part of it. This device has been tested for more than 15 years.
Product specification
| model | Bending radius (R) | Inner height (Hi) | Inner width (Wi) | Outside height (H) | Outside width (W) | Weight (G) | Remarks |
|---|---|---|---|---|---|---|---|
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) | kg / m (ibs / ft) | ||
| TLG75 | 32 (1.26) | Can be customized | 50 (1.97) | (Wi + 19mm) | Subject to actual weighing |
| model | R | H L | D | K | P | N | d1 | Support plate form |
|---|---|---|---|---|---|---|---|---|
| TLGB75 | 100 (3.94) 150 (5.91) 200 (7.87) 250 (9.84) 300 (11.81) |
250 (9.84) 350 (13.78) 450 (17.72) 550 (21.65) 650 (25.59) |
210 (8.27) 310 (12.20) 410 (16.14) 510 (20.08) 610 (24.02) |
455 (18.31) 620 (24.41) 780 (32.71) 935 (36.81) 1090 (42.91) |
75 (2.95) | 13 (0.51) | 70 (2.76) | III |

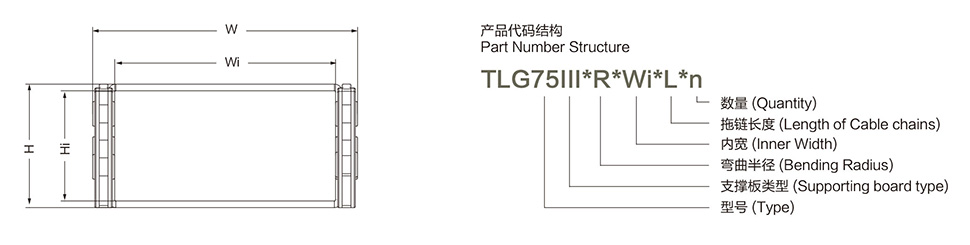

Ordering example-whole towline
| Please indicate the length or number of chain links such as: | 1 meter or 12 knots |
| TLG75III * R200 * 200 * 1000 * 2 | (Two TLG75 steel drag chains with a length of 1 meter, a radius of 200mm, an inner width of 200mm, and a type III support plate) |
