2 in 1 Two Plane Precision Uncoiler

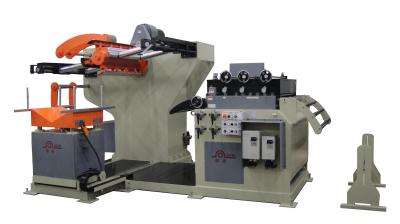

2 IN 1 TWO PLANE PRECISION UNCOILER & LEVELER
MLT,MLTA

‧ 2 in 1 uncoiler & straightener is designed for save the space.
‧ The unique 2 section leveling designed for solving the high flatness and leveling stability of material requirement.
‧ Flip – Top leveler head device designed for easy maintenance operation.
‧ Adopting the dual inverter driving motors to reduce thes cratching problem of the material surface.
‧ Manual type in feed coil guiding device to simplify the coil loading operation.Custom-made accessories.
‧ It is welcome for any your special demand to create your own suitable machine.

Specification

Accessories

Flip – Top leveler head device.

The opening function is designed for cleaning the working rolls.

Specialty

  • Height leveling
  • Height efficiency
  • Height stability
  • Saving space over 50%
  • Flip-top leveler head device

Leveler Rolls

MLT Series

Modle MLT-500 MLT-600 MLT-700 MLT-800 MLT-900 MLT-1000
Width of Material (mm) 500 600 700 800 900 1000
Thickness of Material (mm) 0.5 ~ 2.0
Feeding Upper Rolls (mm) 60 x 1 pce
Feeding Lower Rolls (mm) 78 x 1 pce
Leveler Rolls (mm) 50 x 14 pcs 50 x 14 pcs 60 x 14 pcs 60 x 14 pcs 60 x 14 pcs 60 x 14 pcs
Leveler Motor (mm) 2 3 3 5 5 7.5
Leveler Inverter (mm) 1.5 2.2 2.2 3.7 3.7 5.5

Standard Accessories

  • Flip – Top leveler head device.
  • Manual in feed coil guide device.
  • Motor driven Uncoiler & Leveler with inverter control.
  • 2 points micro adjustment with 3 sets. (Attached withdial gauge)
  • Snubber arm.
  • Manual coil guide.
  • Touch loop control sensor.
  • A frame type coil guide.

Optional Accessories

  • Hydraulic expansion device.
  • Ultrasonic speed loop control device.
  • Photoelectric sensor.
  • Coil car.
Width of Material (mm) 500 600 700 800 900 1000
Max. Coil Weight (kg) 2000 2000 3000 3000 5000 5000
Coil I.D. (mm) Ø450 ~ 520 Ø480 ~ 520
Max. Coil O.D. (mm) 1200 (Option : 1500)
Uncoiler Expansion Manual or Hydraulic Hydraulic
Uncoiler Motor (HP) 1 1 2 2 3 3
Uncoiler Inverter (kW) 0.75 1.5 1.5 2.2 2.2 3.7
