Solenoid Valves - WH／WE

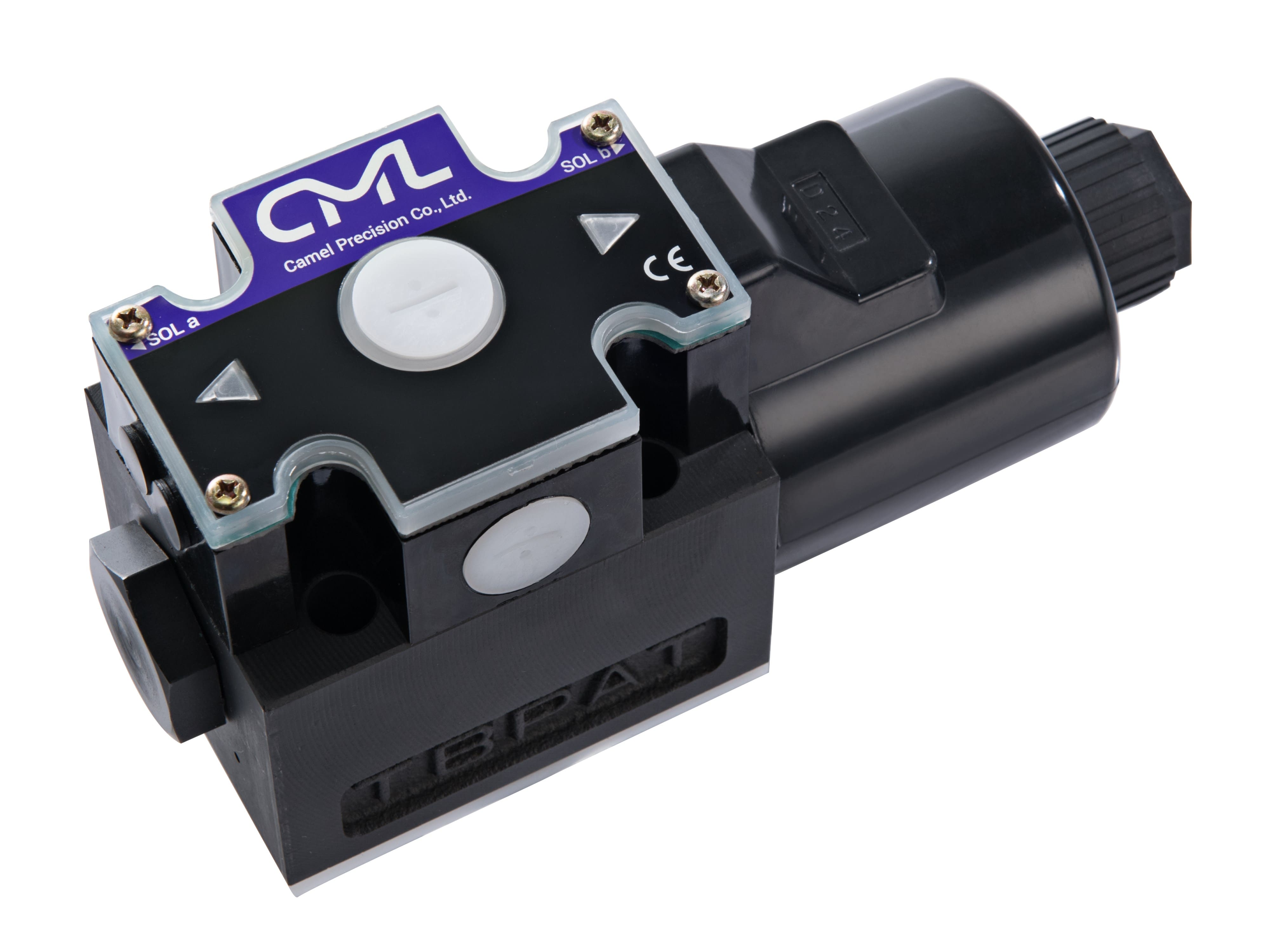

High Back Pressure Type Solenoid Valve
WE G03
High pressure, large flow, low noise, Smooth motion when switching.
Dual-channel design, low impedance, high efficiency.
Water & dust proof electric solenoid, high safety design.
ISO standard measurements, easy to install.
Clear directional light indication.
100% inspected, stable high quality.
Specification
Conversion Table
| MODEL | SIZE | ISO | CETOP | NFPA | DIN | |
| WE*-G03 | 3/4" | 9mm | ISO 05 | CETOP 5 | D05 | NG 10 |
Specification
| WE | 42/43 | G03 | C2 | A110 | N | |||
| Product Series | Positions | Nominal Dia | Spool Type | Coil Voltage | Connection Type | |||
| High Back Pressure Type Solenoid Valve | 4 Ways 2 Positions |
4 Ways 3 Positions |
G03: 3/4" (9mm) ISO: CETOP 5 DIN: NG 10 NFPA: D05 |
See Spool List | A 110 | AC100V 50Hz | N: DIN Connector Type | None: Wiring Box Type |
| AC110V 60Hz | ||||||||
| A 120 | AC110V 50Hz | |||||||
| AC120V 60Hz | ||||||||
| A 220 | AC200V 50Hz | |||||||
| AC220V 60Hz | ||||||||
| A 240 | AC220V 50Hz | |||||||
| AC240V 60Hz | ||||||||
| D 12 | DC 12V | |||||||
| D 24 | DC 24V | |||||||
View our website to search model code, technical data, performance curve and measurement
