Disc ／ Chain Type Tool Magazine

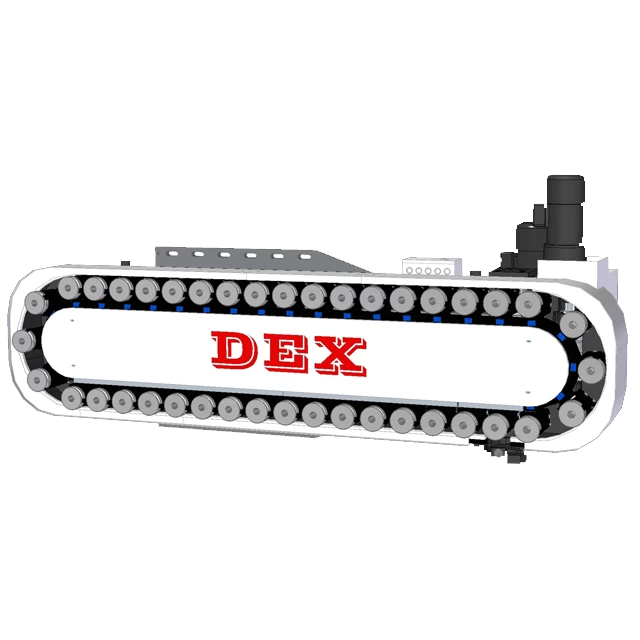

50# Chain type Tool Magazine (left-mag.) 40T／32T Chain type Tool Magazine (vertical)
40T/32T
Specification
Size Drawings
40T
| Specifications | |
|---|---|
| Tool Arm Length | 700 / 800 / 900 mm |
| Tool Models | BT / CAT / DIN / HSK100A |
| Tool Capacity | 32T / 40T |
| Maximum Tool Length | 350 mm |
| Maximum Tool Diameter | Ø120 mm |
| Maximum Tool Weight | 18 kg |
| Drive Source | Ø3-220V/380V |
| Pneumatic Pressure | 4.5-8 kg/cm |
| Tool Change Time (ATC) | T to T: 1.95~2.15 sec |
