HEAVY DUTY PRECISION LATHE
Heavy Duty Precision Lathe-X Series
X41

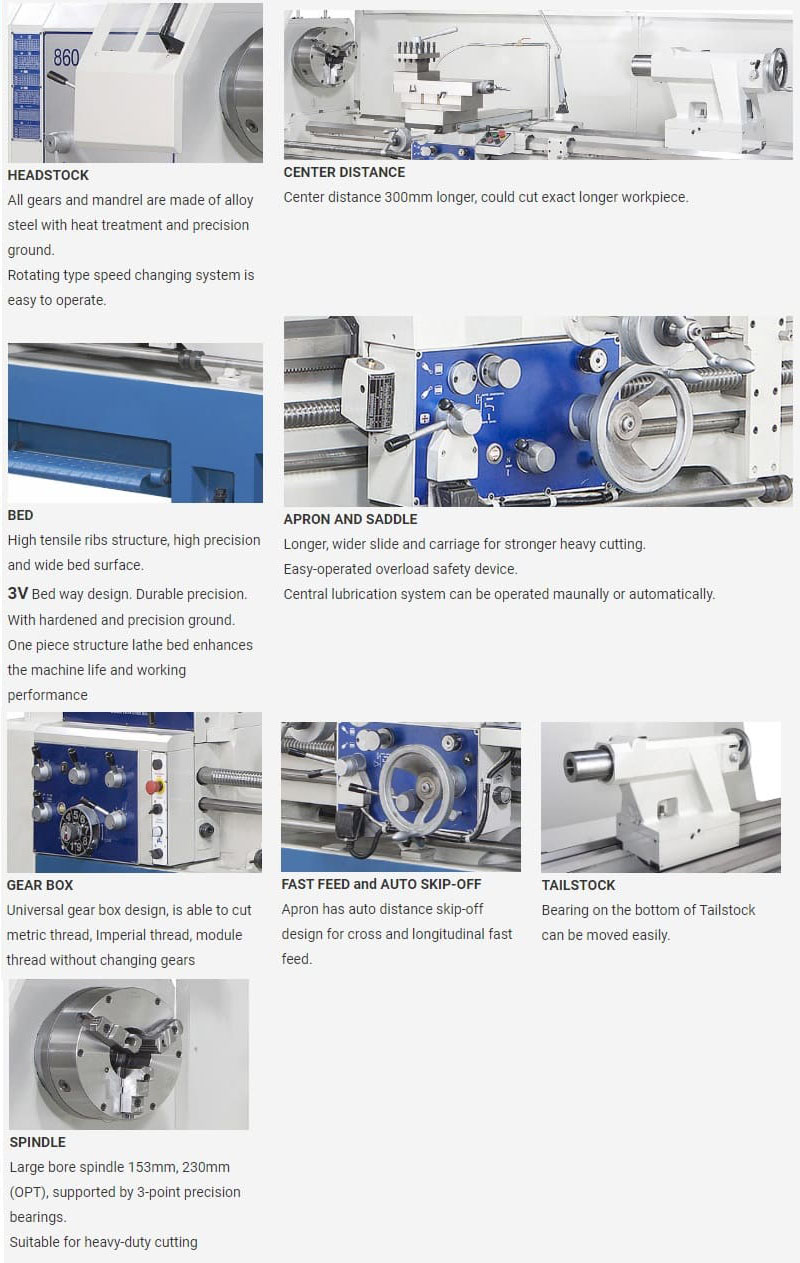

STANDARD ACCESSORIES
Tool Box 1 pc
Centers 2 pcs
Safety pin 1 pc
Screw wrench for cutter setting 1 pc
Back plate 1 pc
Coolant system 1 set
4-way tool post 1 set
Auto-feed stopper ring 1 set
Center sleeve 1 pc
Levelling pads 1 set
OPTIONAL ACCESSORIES
3-jaw scroll chuck
4-jaw independent chuck
Face plate
Steady rest
Follow rest
Work light
4-position carriage stop
Micro carriage stop
Live centers
Rear cutter rest
Taper turning attachment
Rear splash guard
Chuck guard
American tool post
Change gears for D.P and module thread
5C lever collet closer
Driving plate
Quick change tool post
Digital readout
Hydraulic copying machine
Chip guard
ID/OD Grinder
Specification
SPECIFICATIONS
X 41 SERIES
| X41 Series | ||||||||
| Specifications / Model | X4170 | X4190 | X41130 | X41170 | X41210 | X41250 | X41290 | X41330 |
| Swing Over Bed | 1060 mm (42") | |||||||
| Swing Over Cross Slide | 810 mm (32") | |||||||
| Swing Over Gap | 1360 mm (54") | |||||||
| Width of Gap | 475 mm (19") | |||||||
| Center Distance (mm) | 1810 (72") |
2310 (92") |
3310 (132") |
4310 (172") |
5310 (212") |
6310 (252") |
7310 (292") |
8310 (332") |
| Max. Length for Workpiece | 1650 | 2150 | 3150 | 4150 | 5150 | 6150 | 7150 | 8150 |
| Spindle Bore | 153 mm (6") / 230 mm (9") (OPT.) | |||||||
| Spindle Nose | A2-11 / A2-15 (OPT.) | |||||||
| Taper of Spindle Bore | MT7# / 1/20 (OPT.) | |||||||
| Spindle Speed | 8-680 rpm / 6-500 R.P.M. | |||||||
| Spindle Speed | 12 Steps | |||||||
| Spindle Center To Ground | 1278 | |||||||
| Longitudinal Feeds Range | 0.05 ∼ 0.7 mm/rev | |||||||
| Cross Feeds Range | 0.025 ∼ 0.35 mm/rev | |||||||
| Rapid Traverse Z/X Axis | Z Axis = 3.7 M/min / X Axis = 1.8 M/min | |||||||
| Inch Threads Range | 2 ∼ 28 / in (D.P. 4-56) | |||||||
| Metric Threads Range | 0.8 ∼ 14 mm (M.P. 0.5-7) | |||||||
| Leadscrew pitch | ø45 x 2 TPI / P12 mm (OPT.) | |||||||
| Cross slide Travel | 480 mm | |||||||
| Compound Rest Travel | 330mm (13") | |||||||
| Tool Shank | 32 x 32 | |||||||
| Tail Spindle Diameter | ø120 mm (4") | |||||||
| Tail Spindle Travel | 250 mm (10") | |||||||
| Taper of Tail Center | MT6# | |||||||
| Bed Width | 510 mm (20") | |||||||
| Spindle motor | 20HP / 30HP (OPT.) | |||||||
| Bed | One piece | |||||||
| Machine Dimensions (cm) | 375 x 174 | 425 x 174 | 525 x 174 | 625 x 174 | 725 x 174 | 825 x 174 | 925 x 174 | 1025 x 174 |
| Net Weight (Kgs) | 5700 | 6100 | 6800 | 7600 | 8400 | 9200 | 10000 | 10800 |
| Packing Dimensions (cm) | 400 x 185 x 208 | 425 x 185 x 208 | 531 x 185 x 208 | 625 x 185 x 208 | 750 x 185 x 208 | 850 x 185 x 208 | 950 x 185 x 208 | 1050 x185 x 208 |
