INVERTER TRANSMISSION LATHE
INVERTER TRANSMISSION LATHE-V Series
V530


CHARACTERISTICS:

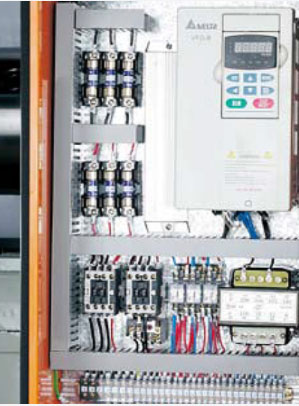

1. Power-saving, stable electric current, and fine cutting trace.
2. Being controlled by a rotary switch, gear shifting is simplified.
3. Stepless speed shifting, any speed in the range is available.
4. Cutting depth reaches 8mm(at 1000rpm).

Specification

SPECIFICATIONS

V 530 SERIES
V530 Series
Specifications   /   Model V2122 V2130 V2140 V2160 V2190
Swing Over Bed 520 mm (20-1/2")
Swing Over Cross Slide 330 mm (13")
Center Height 260 mm (10-1/4")
Distance Between Centers 560 mm (22") 760 mm (30") 1000 mm (40") 1500 mm (60") 2200 mm (90")
Swing Over Gap 740 mm (29-1/8")
Width Of Bed 300 mm (11-4/5")
Spindle Nose ASA D1 - 8
Spindle Bore 80 mm (3")
Taper of Spindle Bore MT 7
Range of Spindle Speed 20 ~ 2000 R.P.M. ( stepless )
Inch Threads Range 4 ~ 56 T.P.I.
Metric Threads Range P 0.5 ~ P 7
Longitudinal Feeds Range 0.05 ~ 0.82 mm (0.002-0.032")
Cross Feeds Range 0.02 ~ 0.4 mm (0.001-0.0094")
Leadscrew Diameter 35 mm (1-1/3")
Leadscrew Pitch 4 TPI or 6 mm
Taper of Tail Center MT 4
Tail Spindle Travel 150 mm (5-7/8")
Tail Spindle Diameter 68 mm (2-2/3")
Main Drive Motor 7.5HP  (5.625KW)
Coolant Pump 1/8 HP (0.1KW)
Compound Rest Travel 125 mm (4-7/8")
Cross Slide Travel 275 mm (10-4/5")
Machine Dimensions (cm) 165 x 81 x 125 189 x 81 x 125 215 x 81 x 125 265 x 81 x 125 342 x 81 x 125
Packing Dimension (cm) 182 x 95 x 168 200 x 95 x 168 228 x 95 x 168 279 x 95 x 168 355 x 95 x 168
Net Weight 1580 1760 1810 2135 2525
Gross Weight 1680 1860 1910 2285 2675



STANDARD ACCESSORIES

Tool Box 1 pc
Centers 2 pcs
Safety pin 1 pc
Screw wrench for cutter setting 1 pc
Back plate 1 pc
Coolant system 1 set
4-way tool post 1 set
Auto-feed stopper ring 1 set
Center sleeve 1 pc
Levelling pads 1 set

OPTIONAL ACCESSORIES

3-jaw scroll chuck
4-jaw independent chuck
Face plate
Steady rest
Follow rest
Work light
4-position carriage stop
Micro carriage stop
Live centers
Rear cutter rest
Taper turning attachment
Rear splash guard
Chuck guard
American tool post
Change gears for D.P and module thread
5C lever collet closer
Driving plate
Quick change tool post
Digital readout
Hydraulic copying machine
Chip guard
ID/OD Grinder
