CHAMFERING MACHINE

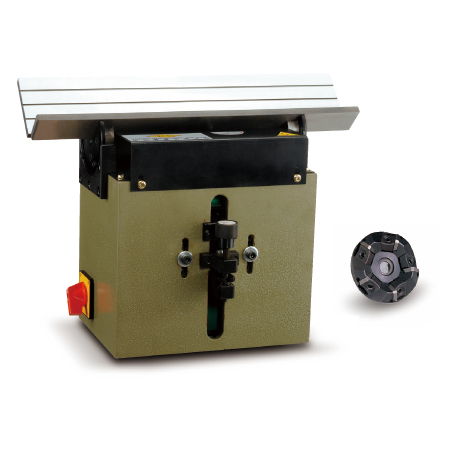

CHAMFERING MACHINE (ANGLE ROTATABLE FACE MILLING CUTTER TYPE)
ACMC-500
Features
○ Working based on surface milling principles,the chamfering way is same as milling machine.
○ Suitable for carbon steel, alloy steel, iron and aluminum.
○ Its surface is smoother than side cutter type, after chamfering
○ Bevel angle:45°
○ Angle canbe rotated.
○ Knife Specification SEKN 1203
Specification
| Model No. | Chamfering Capacity | Running Speed | Voltage | N.W. | G.W. | Shipment Size | Remarks |
|---|---|---|---|---|---|---|---|
| ACMC-500 | 0~3 m/m | 3600 R. P. M. | 110/220/380 V | 28 kg | 32 kg | 53x42x41 cm |
