Z-AXIS SET POINT STATION
Z-AXIS SET POINT STATION( FOR TINY TOOL USE )
ZPM
Features

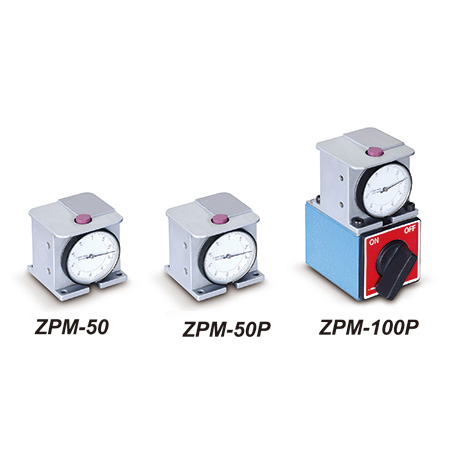

Model No. ZPM-50 / ZPM-50P / ZPM-100P
○ Minimum measurement of cutting tool : 0.1 m/m.
○ Measurement side is ceramics and it is not easily to scratch.
○ Measurement gauge is designed by inserting. Measurement gauge will not easily breakdown by crash
○ We have magnetic base and without magnetic base for your choice.
○ We have 50m/m height and 100m/m heigh for your choice.
○ Suitable for CNC machine center, milling machine, engraving machine, CNC lathe and lathe.
○ The precision of measure gauge : 0.01 m/m.
Minimum measurement of cutting tool : 0.1 m/m .
Specification
| Model No. | Dianeter of cutting tool least measurement | Height | N.W. | G.W. | Shipment Size |
|---|---|---|---|---|---|
| ZPM-50 | 0.1 m/m | 50 m/m | 0.5 kg | 0.6 kg | 13.5x10.5x8 cm |
| ZPM-50P | 0.1 m/m | 50 m/m | 0.5 kg | 0.62 kg | 13.5x10.5x8 cm |
| ZPM-100P | 0.1 m/m | 100 m/m | 1.4 kg | 1.5 kg | 13.5x10.5x8 cm |
