Worm Gear Reducer

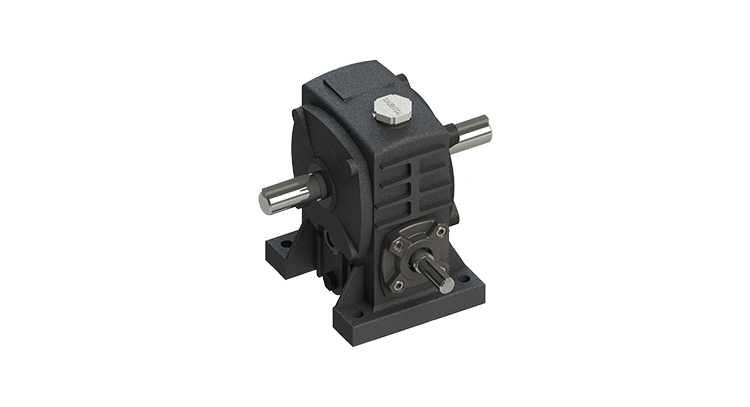

Worm Gear Reducer-W/G series(Input at Bottom)
ASS

FEATURES
1. Available for both IEC and NEMA motors.
2. Range of ratio is from 1/5 to 1/3600.
3. Range of horse power is from 1/4HP up to 100HP.
4. Applied preminum quality double-lip oil seals.
5. Medium Carbon Steel (S45C) worm shaft with harden heat treatment and grinding on threads.
6. Chromium Molybdenum Alloy Steel (SCM440) worm shaft with high frequency heat treatment and grinding on threads for box size 300 to up.
7. Aluminum Bronze (ALBC3) wheel for a better durability.
8. Robust housing made in Grey Iron (FC20) and Ductile Cast Iron (FCD45) for box size 300 to up.
9. Removable base for universal mounting gearboxes.

Specification

ASS series
Size Output-Shaft [mm] M2 [Nm] Max I - Min I - Max
40 16 70 1/10~1/60 1/10~1/60
50 17 115 1/10~1/60 1/10~1/60
60 22 200 1/10~1/60 1/10~1/60
70 28 300 1/10~1/60 1/10~1/60
80 32 400 1/10~1/60 1/10~1/60
100 38 450 1/10~1/60 1/10~1/60
120 45 520 1/10~1/60 1/10~1/60
135 55 810 1/10~1/60 1/10~1/60
155 60 1700 1/10~1/60 1/10~1/60
175 65 2000 1/10~1/60 1/10~1/60
200 70 2200 1/10~1/60 1/10~1/60
225 80 2500 1/10~1/60 1/10~1/60
250 90 2700 1/10~1/60 1/10~1/60
300 95 3800 1/10~1/60 1/10~1/60
350 115 5100 1/10~1/60 1/10~1/60
400 130 7000 1/10~1/60 1/10~1/60
