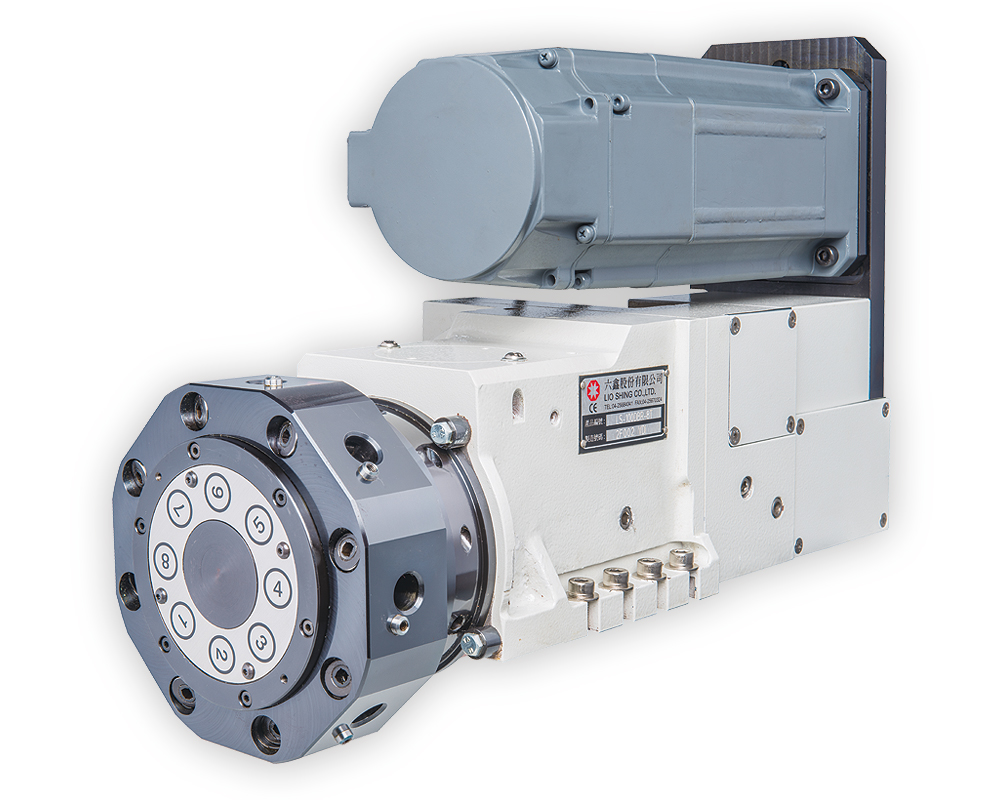

LS-100DBR

Powered Turret Features:
Turret rotation and indexing is driven by a special servo motor.
Tool holders are driven by a servo motor that features high torque output and no noise.
Fast tool change without change error.
Repeatability accuracy reaches 0.003 mm.
Three-piece type curvic clutch ensures high positioning accuracy.


Turret center height 50 mm


SERVO TURRET:
Servomotor: HG-KR43JK ; Gear ratio 1/36
Hydraulic power source: P = 20 kg / cm²

Hydraulic cylinder clamping force: 663 kg



POWERED TOOL HOLDER:
Tool shank specifications: VDI16 DIN1809(ER11)
Max. tool speed: 6,000 rpm
Spindle motor specification:
MITSUBISHI—SJ-P1.5
FANUC—α1 0.5/1.5 kw

Tool and motor transmission gear ratio 1 : 1

Specification

Specifications And Accessories

MODEL   LS-100DBR
Center height mm 50
Number of tools N 8T
Rotating time (tool-to-tool) sec 0.31
Rotating time (including locking) sec 0.41
Total indexing time for 180° sec 0.62
Total indexing time for 180° (including locking) sec 0.72
Gear speed ratio   36:1
Curvic couplings type   3 Piece type
Turret servo motor   HG-KR43JK
MR-J4-40A-RJ
Hydraulic working pressure Kgf/cm² (20-25)20
Flow rate L/min. 20
Thrusting force of hyd. cyl. Kgf 663
Accuracy of repeatability mm 0.003
N.W (Without spindle motor) Kg 67
Tool servo motor   MITSUBISHI - SJ-P1.5
FANUC - α1 0.5/1.5 kw
