Servo Motor Lathe Turret

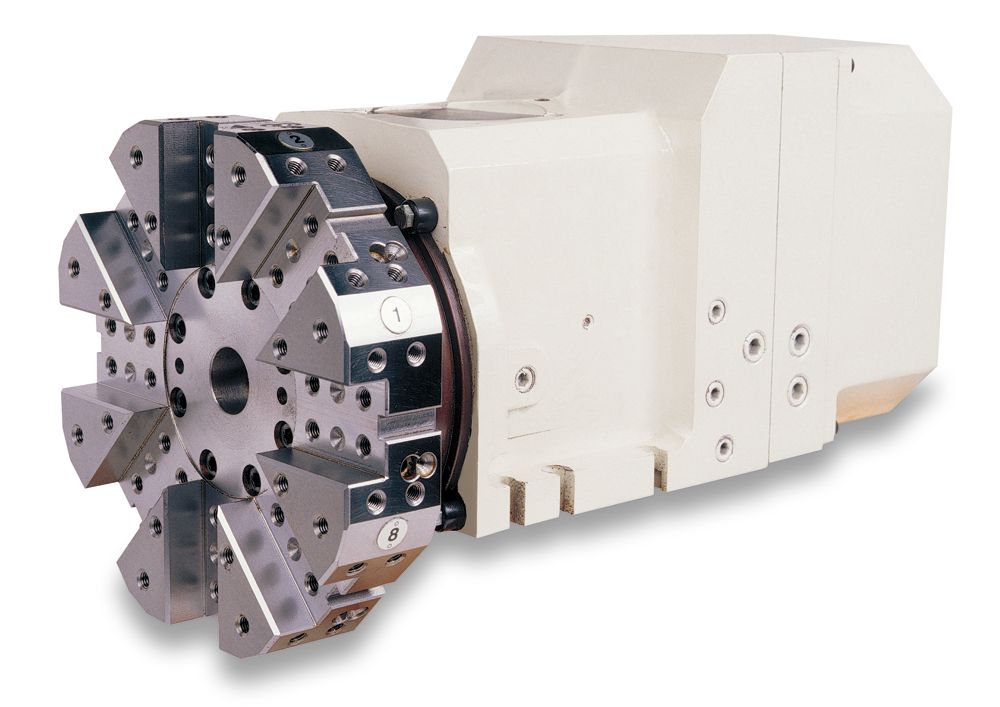

Servo Turret
LS-120SV/LS-160SV/LS-200SV
Servo Turret Features:
The turret rotation and indexing is driven by a special servo motor.
High torque output, low noise.
Fast tool change without tool change error.
The turret can be controlled by various controllers.
Specification
Specifications And Accessories
| MODEL | LS-120SV | LS-160SV | LS-200SV | |
| Center height | mm | 63 | 80 | 100 |
| Number of tools | N | 8T / 10T | 8T / 10T / 12T | 8T / 10T / 12T |
| Rotating time (tool-to-tool) | sec | 0.42 / 0.4 | 0.4 / 0.38 / 0.35 | 0.4 / 0.38 / 0.35 |
| Rotating time (including locking) | sec | 0.52 / 0.5 | 0.5 / 0.48 / 0.45 | 0.5 / 0.48 / 0.45 |
| Total indexing time for 180° | sec | 0.83 | 0.85 | 0.85 |
| Total indexing time for 180° (including locking) |
sec | 0.93 | 0.97 | 0.97 |
| Gear speed ratio | 48:1 | 24:1 | 24:1 | |
| Curvic couplings type | 3 Piece type | 3 Piece type | 3 Piece type | |
| Servo motor | HG-KR43JK | HG-SR52JK | HG-SR102JK | |
| Hydraulic working pressure | Kgf/cm² | (25-30)30 | (25-30)30 | (35-40)35 |
| Flow rate | L/min. | 20 | 20 | 30 |
| Thrusting force of hyd. cyl. | Kgf | 1,640 | 2,500 | 3,130 |
| Accuracy of repeatability | mm | 0.003 | 0.003 | 0.003 |
| N.W. (without tool disc) | Kg | 48 | 72 | 95 |
