Features:
Designed for drilling in hardened tool steel, carbides and other conductive materials.
Machine frame design provides higher rigidity and stability
Use German caliper checker to position, calibrate and offset machine base
Working tables is made of stainless steel to maintain longer life
Drilling capacity is from 0.2mm to 0.3 mm and suitable for brass or copper electrode tubes
Drilling can enter material at any angle, into curved surfaces and irregular shapes
Patened design - the electrode can be rectified by auxiliary guide along a long distance of machining
The experiment demonstrates that electrode wear is low and economical by this way to drilling
Using distilled water as dielectric fluid can reduce environment pollution
Automatic pressure release function
Install precision servo motor to control drill stable
* Besides EDM-3020, there are various other models;
Click the pictures above or here to our official website to see more.

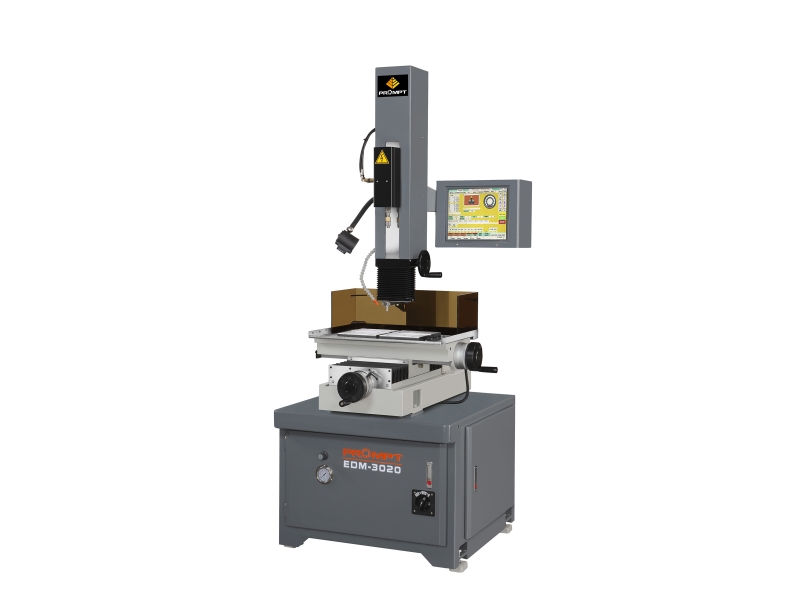

| Model | EDM-3020/CNC |
|---|---|
| Work table size | 400*260 mm |
| X/Y/Z Travel | 300*200*345 mm |
| W Travel | ----- |
| X/Y/Z DRO Resolution | 0.005 mm |
| Electrode Plate To Work Table | 140 mm |
| Guide Between Worktable | 67-200 mm |
| Max Electrdoe Weight | 150 kg |
| Machine Weight | 500 kg |
| Machine Dimension (L*W*H) | 1400*1655*2054 mm |
| Max. Machining Current | 30 A |
| Max. Power consumption | 4 KVA |
| Accessories (★：Standard accessories) | |
|---|---|
| Digital read out | 3 Axes |
| Display | 3 Axes |
| Depth setting | ★ |
| Electrode holder with handle (mm) | 0.2-3.0 |
| Rubber chuck | 10 Pcs |
| Filter/2 PCS | ★ |
| Tool box with tools /1 SET | ★ |
| Ceramic guide 1.0 mm / 1 PC | ★ |
| Electrode brass tube 1.0 x 400 mm / 10 PCS | ★ |
| Working lamp / 1 SET | ★ |
| Leveling bolts and pads / 1 SET | ★ |
| Philips & slotted screwdrivers / 1 SET | ★ |
| Bucket / 2PCS | ★ |
| Hexagon wrench / 1 SET | ★ |
| Motor and flush stand / 1 SET | ★ |
