NC HIGH SPEED HEAVY DUTY AUTOMATIC CARBIDE CIRCULAR SAW
NC HIGH SPEED HEAVY DUTY AUTOMATIC CARBIDE CIRCULAR SAW (NONFERROUS METAL CUTTING)

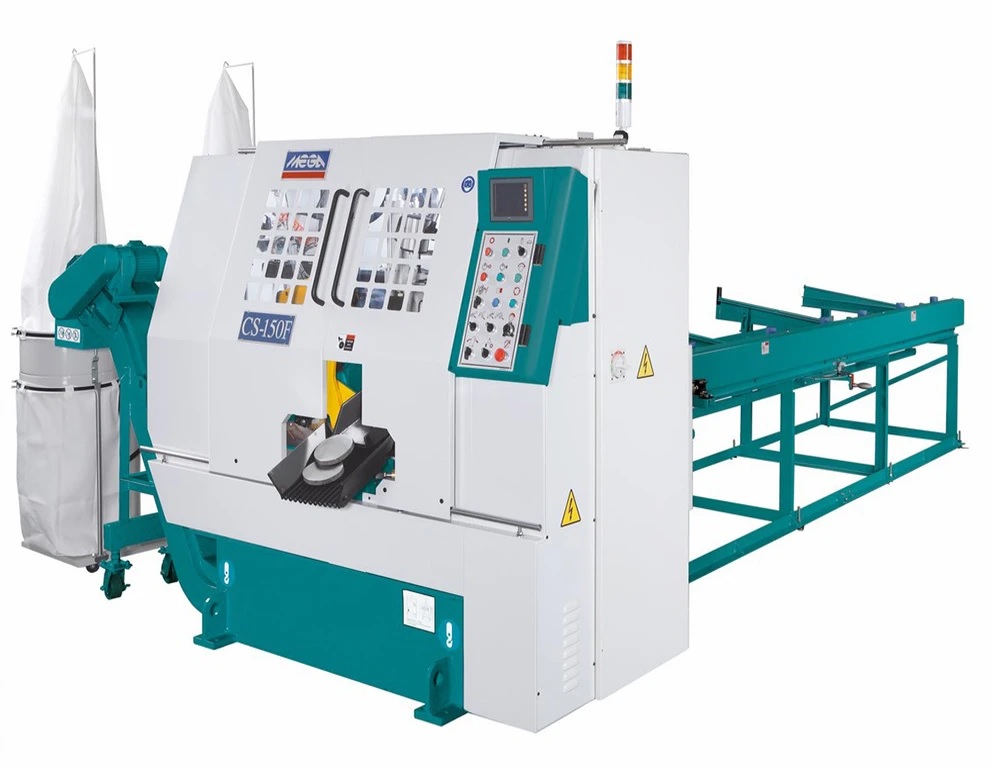

CS-150F

1.MECHATRONICS CONTROL:
High speed precision cutting with an almost ground finish surface and excellent repeatability has been made possible by numeric control, servo motor feeding cut-off and bar feed, and vastly improved carbide saw blade.

2.CUTTING FASTER:
Designed especially for cutting nonferrous metal, such as aluminum alloy,copper,plastic steel.10 times faster than cutting by machine with conventional HSS blade.

3.ENHANCE BLADE SERVICE LIFE:
Rigid structure and anti-vibration design ensure excellent and accurate repeatability with finishing cut surface for high-speed cutting and longer saw blade life.

4.LESS MATERIAL CONSUMING:
Vastly improved carbide saw blade is thinner,achieving less material consuming and resulting in less blade wear and less power consumption.

5.SEPARATING SYSTEM:
Separator automatically separates trim edge cut and residue into different storage tanks.

6.OVERHEAD CLAMPING VISE JAW:
Ensure material being clamped firmly and avoid vibration while fast cutting single bar or 2 pieces same size bar at one time.

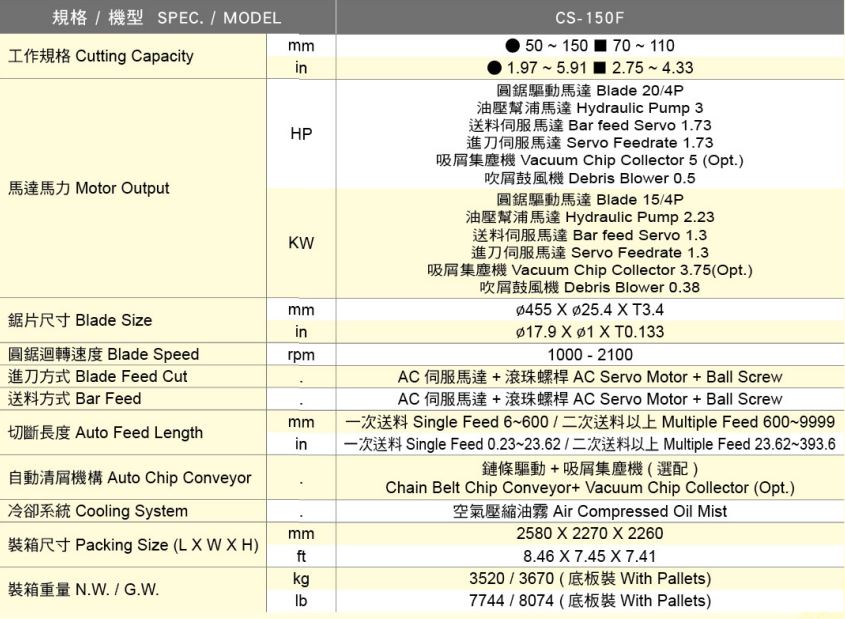

Specification
