DOUBLE COLUMN HEAVY DUTY AUTOMATIC HORIZONTAL BANDSAWS
DOUBLE COLUMN HEAVY DUTY AUTOMATIC HORIZONTAL BANDSAWS
H400A/GA

1.Precise cut off length setting.

2.Auto head elevation and quick approach control.

3.Nesting fixture device for bundle cutting.

4.Cutting piece counter with auto-shut-off.

5.Multiple stroke counter for long pieces. (standard 9 times)

6.Power-driven blade cleaning brush and coolant cleaning flush hose.

7.Carbide and roller blade guides.

8.Hydraulic shuttle vice back-jaw feed method.

9.Hydraulic blade tension control.

10.Work-area light.

11.Automatic chip conveyor.

12.Two-way open rear vice jaws to ensure precise bar-feed repeatability even in cutting a little bit warped / surface rough works.

13.Unique split machine vice allows cutting to within as little as 50 mm of end automatically.

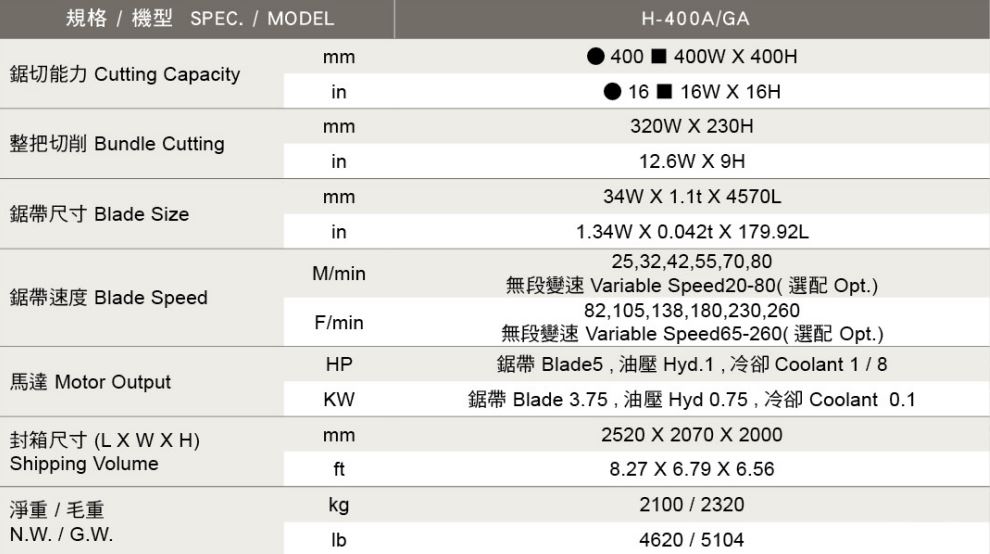

Specification
