Double Column High Speed Engraving Machine
Double Column High Speed Engraving Machine

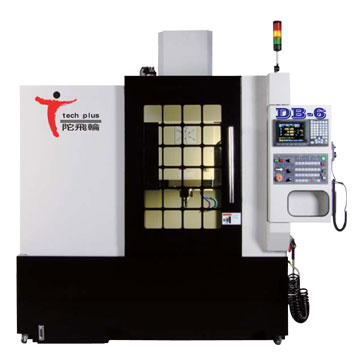

DB-6


  1. MITSUBISHI high-level control system

    1. Three-axis, low-inertia, high-torque motor to do three-axis control, three-axis simultaneous engraving and milling

    2. Ultimate PLC human machine interface detect and display each warning message

  2. 24000RPM built-in high-speed spindle, high-rigidity, high-speed design, with efficiency and the best production

  3. Rigidity of 32C cast iron with weather proof development lead to stability and guaranty with no deformation for a long time, provide more stable processing and extend tool life and more efficient

  4. Solid bridge structure, the rigidity on Offset structure on X axis and Counter-positioning on Z axis structure better than double column ones, providing stable and light weight excellent performance

  5. Adopt the Geneva drive design 16 Tool Disc Magazine, store variety of tools, and libraries over the tool blade to adopt long-range photoelectric detector detection, tool changing will not occur error as tool handle switch, leaving detection of failure, to ensure that Spindle ATC safety

  6. Each axis is allocated 5 precision bearings, backlash error tends to zero after pre-loading pre-tension hollow precision screw

  7. Japan NSK35mm wide-broad gauge gravity roller slide, with working precision of the ramp Lease assembly, so that processing is more stable

  8. Each stack of surface contact is precision shovel to assemble accurately. (Shovel skill is non-temperature processing technology to correct the thermal deformation grinding lead to sophisticated assembly and eliminate machine resonance.)

  9. Hermetic separation of electrical heat cabinet, which can effectively isolate heat, grease, increase the stability machine life

  10. Rear flush design, which can effectively remove iron filings and easy to clean

  11. Oil-water separation system, cutting fluid and orbital separation of the oil so that dry machining objects and cutting fluid from oil pollution, increase the service life of cutting fluid

  12. Well-designed automatic lubrication systems with metal material pipe, so that each machine does not occur lubrication problem and lubrication pipe burst or aging issues, to ensure the accuracy of transmission parts

  13. Automatic tool measurement system integrated into the design goal post design, will not interfere with the workpiece, the supporting frames of an empty crate with vertical tool turret doors, to ensure that no residual debris order make tool-change more smoothly

  14. Isolated fully Enclosed Splash Guard, ergonomic, and to ensure non-leakage cutting fluid and gas doesn't spill, keep the factory clean and in a high degree of personnel safety

  15. BALL BAR dynamic laser positioning and dynamic through the circle check make TECH PLUS machines head for international standards



Specification


Model / Spec.DB - 6
ControllerMITSUBISHI / FANUC / SIEMENS
SystemWinCE / WinXP
EthernetRS232 / RJ45
X.Y.Z Travel600*500*370 mm
X.Y.Z Rapid Traverse20000 mm/min
Spindle Nose to Table140-510 mm
Spindle Speed24000 rpm
Spindle Motor8.5 kw
Spindle TaperISO30
ATC16ATC
Table Size680*520 mm
Max. Loading650 kgs
T-Slot12*4*100 mm
Machine Size2100*1970*2560 mm
Machine Weight5600 kgs
Power25KV
Air6 kgs/cm2
