4、5 Axis High-Speed Processing Machining Center
4、5 Axis High-Speed Processing Machining Center

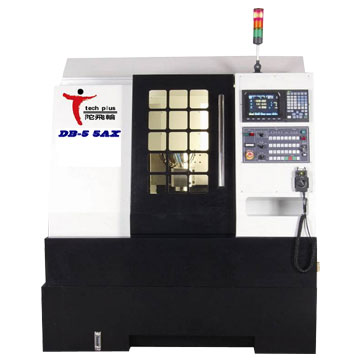

DB-5 5AX


  1. SIEMENS high-level control system

    1. Five-axis low-inertia high-torque motor to do five-axis control

    2. Ultimate PLC human machine interface detect and display each warning message

  2. 30000RPM built-in high-speed spindle, high-rigidity, high-speed design, with efficiency and the best production

  3. Rigidity of 32C cast iron with weather proof development lead to stability and guaranty with no deformation for a long time, provide more stable processing and extend tool life and more efficient

  4. Rigidity of 32C cast iron with weather proof development lead to stability and guaranty with no deformation for a long time, provide more stable processing and extend tool life and more efficient

  5. Adopt the Geneva drive design 16 Tool Disc Magazine, store variety of tools, and libraries over the tool blade to adopt long-range photoelectric detector detection, tool changing will not occur error as tool handle switch, leaving detection of failure, to ensure that Spindle ATC safety

  6. Each axis is allocated 5 precision bearings, backlash error tends to zero after pre-loading pre-tension hollow precision screw

  7. Japan NSK35mm wide-broad gauge gravity roller slide, with working precision of the ramp Lease assembly, so that processing is more stable

  8. Each stack of surface contact is precision shovel to assemble accurately. (Shovel skill is non-temperature processing technology to correct the thermal deformation grinding lead to sophisticated assembly and eliminate machine resonance.)

  9. Hermetic separation of electrical heat cabinet, which can effectively isolate heat, grease, increase the stability machine life

  10. Rear flush design, which can effectively remove iron filings and easy to clean

  11. Oil-water separation system, cutting fluid and orbital separation of the oil so that dry machining objects and cutting fluid from oil pollution, increase the service life of cutting fluid

  12. Well-designed automatic lubrication systems with metal material pipe, so that each machine does not occur lubrication problem and lubrication pipe burst or aging issues, to ensure the accuracy of transmission parts

  13. Automatic tool measurement system integrated into the design goal post design, will not interfere with the workpiece, the supporting frames of an empty crate with vertical tool turret doors, to ensure that no residual debris order make tool-change more smoothly

  14. Isolated fully Enclosed Splash Guard, ergonomic, and to ensure non-leakage cutting fluid and gas doesn't spill, keep the factory clean and in a high degree of personnel safety

  15. BALL BAR dynamic laser positioning and dynamic through the circle check make TECH PLUS machines head for international standards



Specification


Model / Spec.DB-5  5AX
ControllerSIEMENS
X.Y.Z Travel520*420*350 mm
Spindle Nose to Table160 - 510 mm
Spindle Speed30000 rpm
Spindle Motor11 kw
A-axis diameter of shaft rotationØ80
B-axis tilt angle±105°
A-axis rotation speed100 rpm/min
B-axis rotation speed50 rpm/min
ATC12ATC
Machine Size1700*1850*2230 mm
Machine Weight3000 kgs
Power10 KV
Air6 kgs/cm2
