Chip Remove

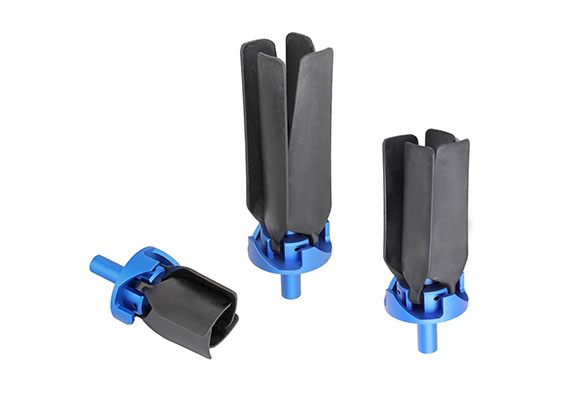

Chip Remover

● Use with collet chucks, the shank is 16mm.
● Suitable for vertical and horizontal machine centers.
● Cleaning by automation saves labor, increases productivity and assures workplace safety.
● Capable of center coolant through, removing metal chips and coolant effectively.
● Pre-shipment inspections are performed to ensure product reliability.

Specification

proimages/Products/Accessories/Chip_Remove/Chip_Remover-feature.jpg

CHIP REMOVER

proimages/Products/Accessories/Chip_Remove/Chip_Remover-figure.jpg


Model No. Specification RPM recommendation Rotation Direction Distance between open wings
and metal chips & fluid
Feed rate recommendation Weight
(KGS)
332.16.168 C16-CR168 Min. 7000 /Max. 12000rpm Clockwise 100~150mm 1000~3000mm/min 0.18
332.16.268 C16-CR268 Min. 5000 /Max. 8000rpm Clockwise 100~150mm 3000~15000mm/min 0.20
332.16.338 C16-CR338 Min. 4000 /Max. 7000rpm Clockwise 100~150mm 3000~15000mm/min 0.22

proimages/Products/Accessories/Chip_Remove/Chip_Remover-TI-EN-cover.jpg
