Angle Head

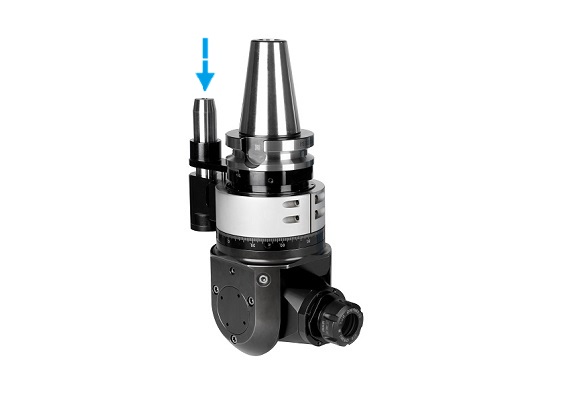

SAU Angle Head Holder (Universal Type For Medium Cutting)
SAU
Universal type for medium cutting
● The Adjustable angle increment is 1˚ and the spindle chuck (output) can be adjusted from 0˚ to 90˚.
● Achieve various demands and different types of applications like machining on the inclined surfaces, processing the clearance and draft angles on molds, etc.
● Coolant feed through dowel pin, coolant outlet from coolant hose.
● Maximum revolution: 4000rpm
● Maximum torque: 40N･m
● Recommended cutting depth ≤ 4mm
● Workable for ATC automatic tool change system
Specification
SAU ANGLE HEAD HOLDER UNIVERSAL TYPE FOR MEDIUM CUTTING
| MODEL NO. | TYPE | L | l1 | S | TORQUE | COLLET | SIZE RANGE | WEIGHT (KGS) |
|---|---|---|---|---|---|---|---|---|
| 12.789.32.328 | BT50 x SAU32E - 328 | 328 | 200 | 110 | 40 N-m | ER32 | 2 ~ 20 | 20.9 |
| INCHES | ||||||||
| 32.789.32.131 | CAT50 x SAU32E - 13.1" | 13.1 | 7.87 | 4.33 | 40 N-m | ER32 | 2 ~ 20 | 21.5 |
