VMC Series / Vertical Machineing Center
Box Way Type / VMC-D850-D1000

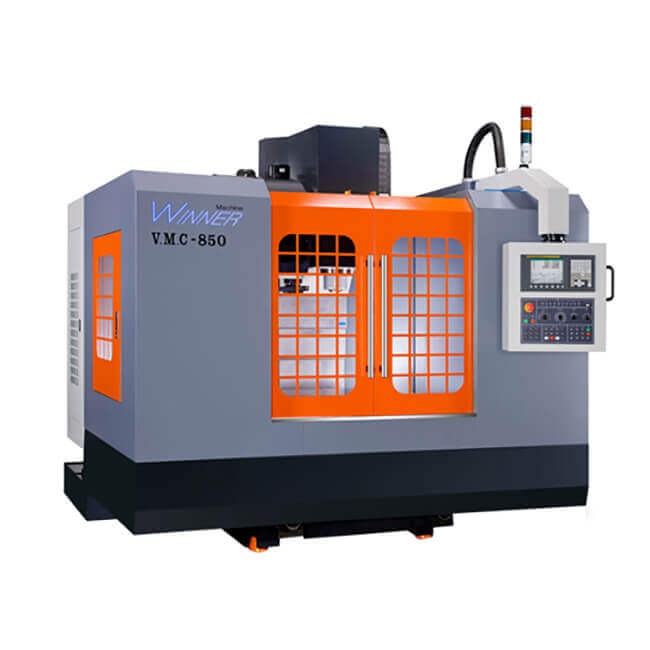

VMC-D850-D1000

Features
Precision ground slide ways & Turcite-B coated on 3-axes for box way & gibs.
Counter-balance weight device or upgraded motor.
The spindle adopts super precision angular contact ball bearings. Spindle speed 8000rpm is standard.
Servo motor and high precision ballscrew are directly coupled in 3 axes.
Arm type Auto Tool Change magazine – 24 tools is standard equipment.
The major construction parts are based on super strong cast iron.
They are stable and precision-proved in structure.

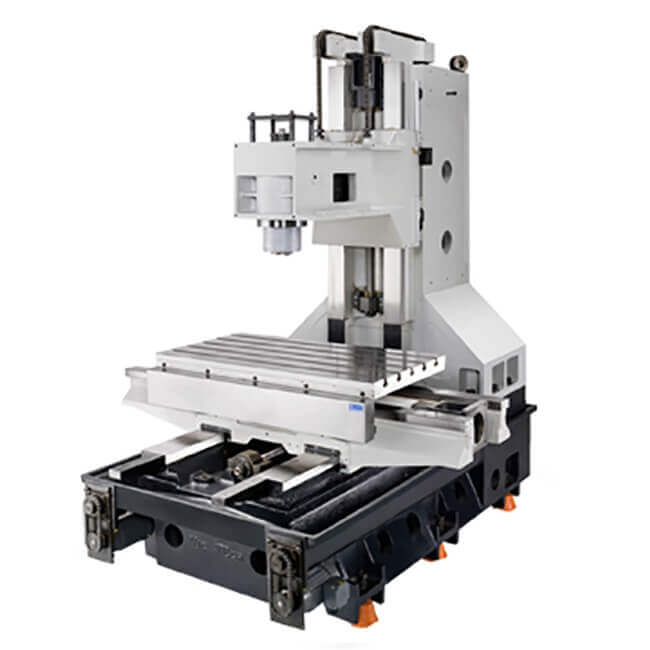

Wide column structure. Wide base enhanced saddle and full supported workpiece structure all contribute to the ability for heavy duty machining.
High rigidity high precision. The enhanced ribs in major construction parts provide the super rigidity for heavy duty cutting.
Top quality well-ribbed castings, Finite Element Analysis (FEA) is used on each new casting to determine the size and location of all internal ribs ensuring high tensional stiffness and minimum vibration.
Cartridge Type Spindle
The heavy-duty spindle utilizes super strong bearings to allow heavy cutting. Oversized disk springs used to hold the tool in the spindle are tested for long life.
Chip Augers
Both sides chip augers designed as one-piece with machine base, which can deliver chips to machine back. The chip augers are incorporated with powerful coolant flushing device to handle chip removal efficiently.

Specification

Specifications

MODEL UNIT D850 D1000
Table
Table size mm 1000x560 1150x560
T slots mm 18x5x100 18x5x100
Max. table loading kg 600 600
Travel
X/Y/Z - axis travel mm 850/560/560 1000/560/560
Spindle nose to table surface mm 120~680 140~740
Spindle center to column mm - 610
Spindle
Spindle transmission   Belt type Belt type
Spindle taper   BT-40 BT-40
Spindle speed rpm 8000 8000
Spindle motor kw 7.5/11 7.5/11
Feed
X-Y-Z MOTOR(Fanuc) kw 1.8/1.8/2.5 2.5/2.5/2.5
X-Y-Z motor(Mitsubishi) kw 2/2/3 2/2/3
X-Y-Z Rapid travel m/min 36/36/30 36/36/20
X-Y-Z Cutting feed rate m/min 10 -
ATC System
ATC type.   Arm type Arm type
Magazine capacity pcs 24T 24T
Max.tool diameter Ø(mm) Ø100 Ø100
Max.tool length mm 200 300
Max.tool weight kgs 8 -
Rail Type
Rail Type - 3-axes Boxways 3-axes Boxways
Dimensions&others
Power consumption KVA 15 -
Air pressure required kfg/CM² 6 -
Floor occupation cm 306x310 -
Machine weights kg 5800 -

All specifications&design are subject to change without prior notice.
