AP/APC Series / Tapping / Drilling Machine
AP Series / Tapping / Drilling Machine

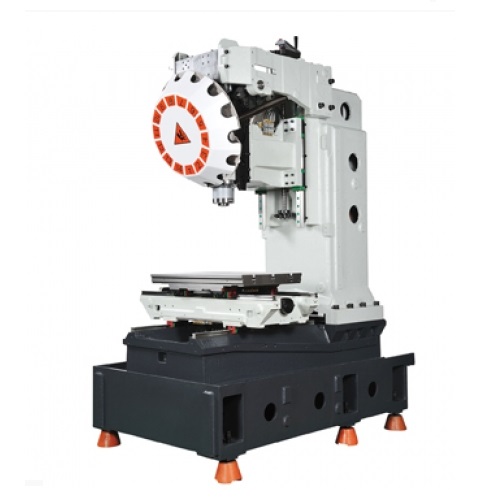

AP-500

Features
High speed drilling & tapping machine.
High speed feed-rate and repeatability accuracy are guaranteed.
Rapid feeding for high precision drilling & tapping.
High speed linear guide ways for X, Y, Z axes to accomplish high rigidity.
Applicable to precision electronic components.
Turret type ATC – The fast, simple and long-life automatic tool changer provides stable and reliable tool change.
Applications
Auto parts.light alloy formed parts machining.
IT components&3C industries processing applications.
Super finishing&round chamfering.
Small hole drilling performance being decreased to 0.1mm.

Specification



Specifications

MODEL UNIT AP500
Table
Table size mm 600x400
T slots mm 14x3x125
Travel
X/Y/Z - axis travel mm 500/400/300
Spindle nose to table surface mm 130~430
Spindle center to column mm 410
Spindle
Spindle speed kg 300
Transmission rpm Direct Driving / 1000
Spindle taper - BT-30
Spindle motor kw 3.7/5.5
Feed
X-Y-Z motor(Fanuc) kw 1.2/1.2/2.8
X-Y-Z motor(Mitsubishi) kw 1.5/1.5/2.0
X-Y-Z Rapid travel m/min 48/48/36
Rail Type
Rail Type - 3-axes Linearways
ATC System
Magazine type - Turret Type
Tool no. pcs 14T
Max.tool length mm 200
Max.tool weight kg 3
Tool to tool change time sec 1.8

All specifications&design are subject to change without prior notice.



Option

4th Axis Rotary Table (OPT) & 5th Tilting Table

  • This rotary table boosts productivity by allowing more machining options with a single setup.

Spindle Oil Cooling System (OPT)

  • The spindle oil cooling device is adopted sufficiently cool down when high speed spindle running, to reduce spindle thermal deformation and beneficial high speed accuracy.

Disc Oil/coolant Separator (OPT)

  • Utilized for efficiently separates the oil from the coolant tank, which shall not effect the coolant oil quality, and workpiece accuracy can be increased.

Chain Type Chip Conveyor (OPT)

  • Compact design but sufficient removal the chips to the left side of machines.
