COLUMN SERIES
COLUMN SERIES

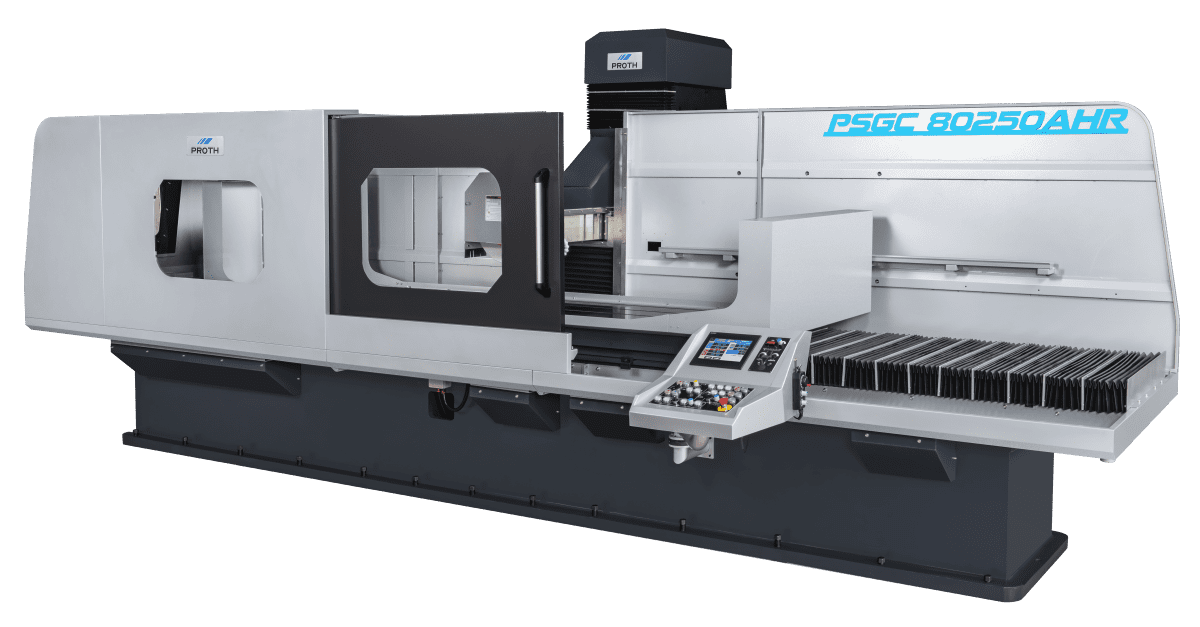

PSGC-80250AHR

Table Size / 800x2500mm

Specification

Product Description

Longitudinal Slideways Cross Slideways Longitudinal Movement Cross Movement Vertical Downfeed Auto Down Feed
Double Vee Way Double Vee Way Hydrulic Automatic Rapid Up/Down Optional
  • The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.
  • Longitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length to keep the table free from torsion and deflection(except PSGS series).

Product Feature

SPECIFICATION / MODELS PSGC
 80250AHR
General Capacity Max. travel (cross x longitudinal) mm 860x2650
Spindle center height from table mm 700
Max height from table top to bottom of standard wheel mm 450
Grinding surface of table mm 800x2500
Longitudinal Movement Hydraulic table speed m/min 1-25
Cross Movement Intermittent cross feed-approx. mm/feed 0.1-25
Continuous cross feed-approx. mm/min 2000
MPG per revolution mm 0.001 x1 / x5 / x10
MPG per division mm 0.001
Vertical Downfeed Rapid traverse approx.(option) mm/min 500
MPG per revolution mm 0.001 x1 / x5 / x10
MPG per division mm 0.001
Grinding Wheel Dimension(O.D x W x I.D) mm 510x75x203.2
Spindle speed(50/60Hz) r.p.m. 1150
Motor Spindle motor   11kW/15HP
Hydraulic motor   7.5kW/10HP
Weight Net weight kg 16000
Gross weight kg 17500
Machine Size Dimension (L x W x H)  m 7.6x4.5x2.9


Notes:

  • Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.
  • Machine appearance will change depending upon different optional equipment selected.
  • Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.
  • Machines are shown with optional equipments.
