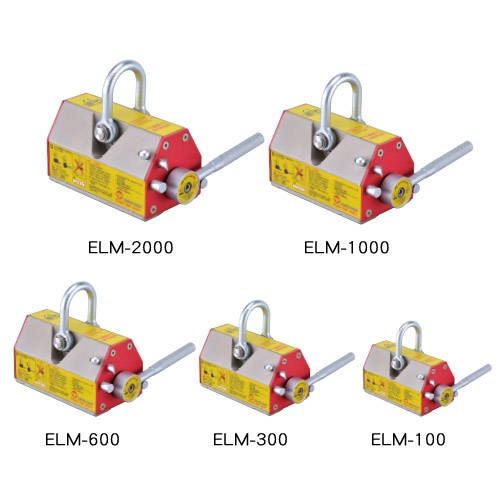

SWITCHING PERMANENT MAGNETIC LIFTER
SWITCHING PERMANENT MAGNETIC LIFTER

The following diagram is for reference only. The operator should test and check if it is in safe range before lifting up the workpiece of steel. Otherwise, the producer will not assume responsibility for any accidents.

Specification

MAXIMUM LIFTING RANGE



Form of material Steel Plate Round Steel
Model Max. Lifting Capacity Min. Thickness Required Max. Lifting Capacity Maximum Diameter Maximum Length
Kg mm Kg mm mm
ELM-100 100 15 45 150 1000
ELM-300 300 25 135 250 1500
ELM-600 600 30 270 350 2000
ELM-1000 1000 40 450 450 2500
ELM-2000 2000 55 900 550 3000

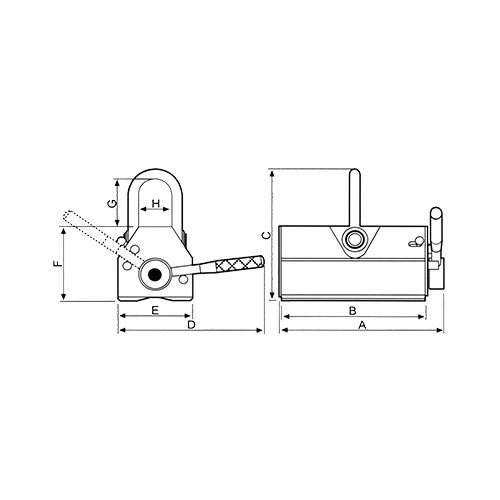

Model Capacity(kg) A B C D E F G H weight Safety Coefficient
mm mm mm mm mm mm mm mm kg
ELM-100 100 107 84 120 125 60 71 41 30 2.5 x 3.5
Times
ELM-300 300 180 155 156 185 90 93 51 41 8.6
ELM-600 600 255 224 212 260 115 120 77 52 21
ELM-1000 1000 280 245 286 371 165 169 97 87 46
ELM-2000 2000 422 380 348 512 216 215 105 121 118
