Hydraulic cylinder

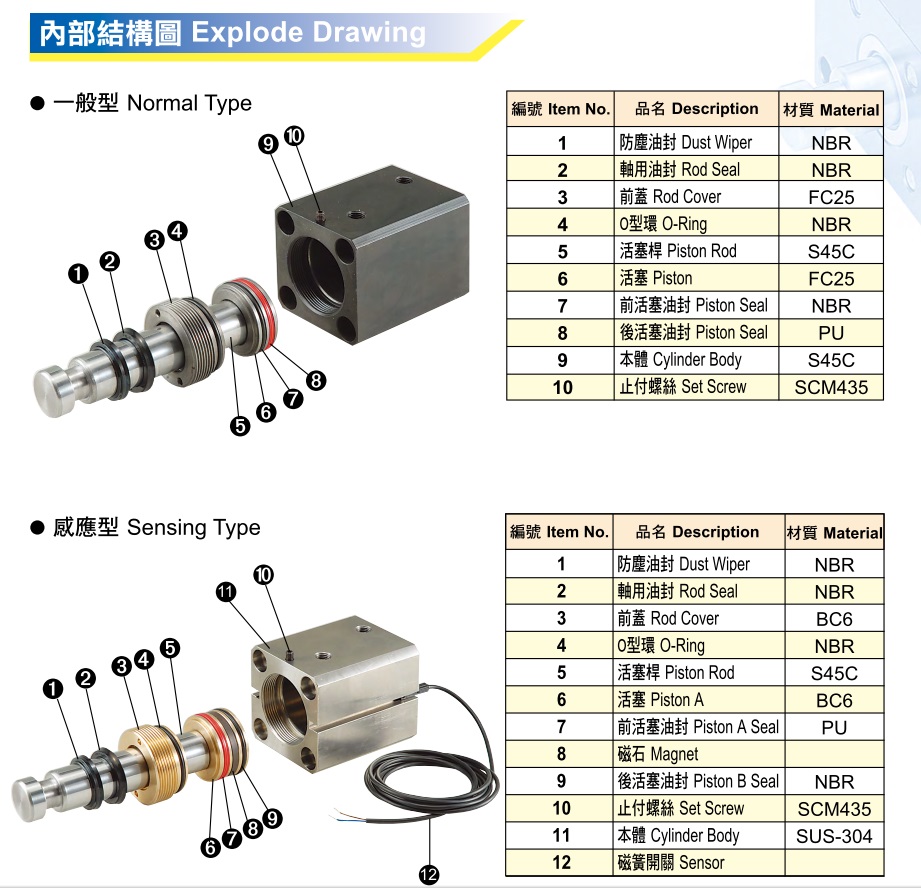

Hydraulic Cylinder-Explode Drawing
FA TYPE
◆ Normal Type:
1.Dust Wiper
2.Rod Seal
3.Rod Cover
4.O-Ring
5.Piston Rod
6.Piston
7.Piston Seal
8.Piston Seal
9.Cylinder Body
10.Set Screw

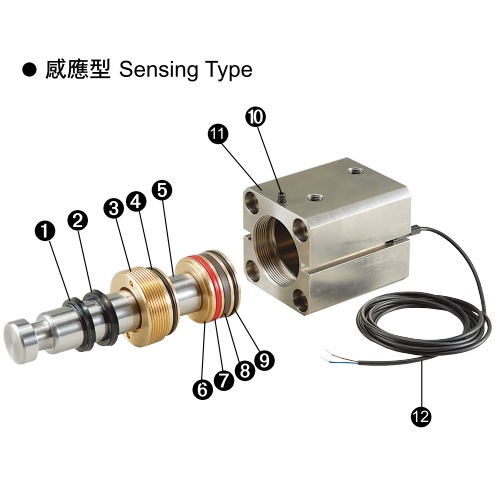

◆ Sensing Type
1.Dust Wiper
2.Rod Seal
3.Rod Cover
4.O-Ring
5.Piston Rod
6.Piston A
7.Piston A Seal
8.Magnet
9.Piston B Seal
10.Set Screw
11.Cylinder Body
12.Sensor
Specification
