Products

Hydraulic cylinder
Thin Hydraulic Cylinder
SD TYPE

Feature: taking little space
Use of pressure: 140 kg/cm2(14MPa)

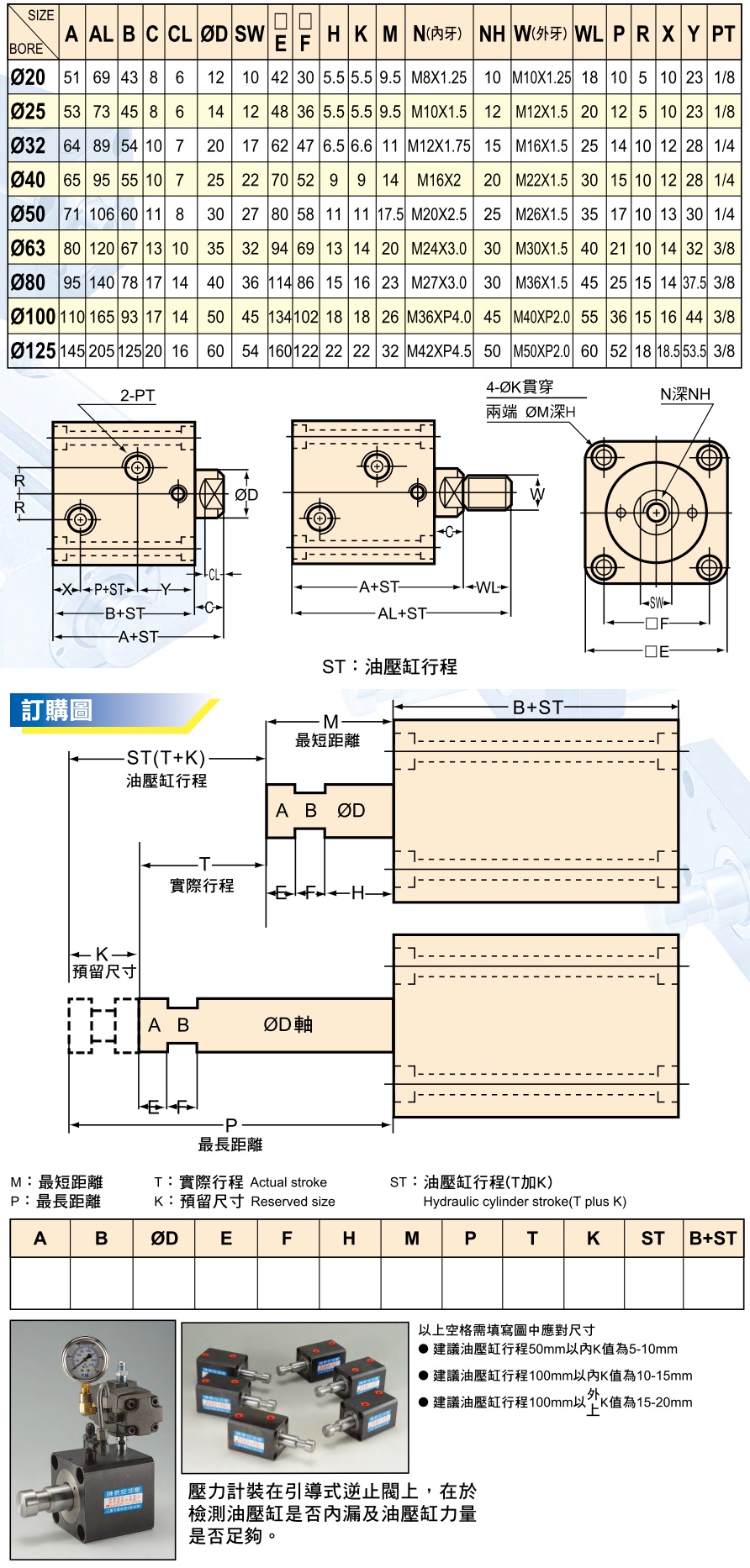

1.Thin Hydraulic Cylinder
2.Type:SD
3.Bore Size (mm)
4.Stroke (mm)
5.Rod Type: N: Tapping, W: Thread, T: Lathe slot, T2: Mill slot
6.Including Bakelite board with "H" code.

Pressure 140 kg/cm2
Max. Pressure 210 kg/cm2
Min. Working Pressure 5 kg/cm2
Working Speed 8-100mm/sec
Working Temperature -10~+60°C
Body S45C

Specification

Mold
Machine
Vehicle
